Reassembly [11/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL OIL PUMP RELIEF VALVE
    1. Coat the oil pump relief valve with engine oil and insert the oil pump relief valve and oil pump relief valve spring into the valve hole.
    2. Using a 27 mm socket wrench, install the oil pump relief valve plug to the oil pump cover.

      Torque: 49 N.m (500 kgf/cm, 36 ft.lbf)

  2. INSTALL OIL PUMP ROTOR SET

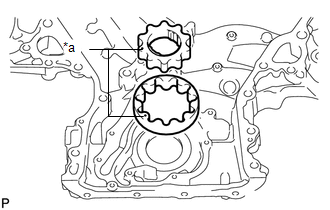

    1. Coat the drive rotor and driven rotor with engine oil and place them into the timing chain cover assembly with the rotor marks facing up. Check that the rotors rotate smoothly.
      GTY830086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark
  3. INSTALL OIL PUMP COVER

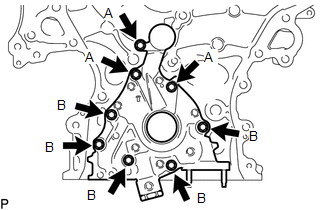

    1. Install the oil pump cover to the timing chain cover assembly with the 8 bolts.

      Torque: 9.1 N.m (93 kgf/cm, 81 in.lbf)

      Bolt Length

      Item Length
      Bolt (A) 22 mm (0.866 in.)
      Bolt (B) 40 mm (1.57 in.)
      GTY811170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
