Disassembly [11/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE OIL PUMP COVER
    1. Remove the 8 bolts and oil pump cover from the timing chain cover assembly.
      GTY627301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

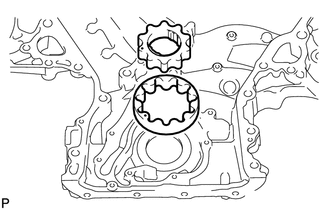

  2. REMOVE OIL PUMP ROTOR SET
    1. Remove the drive rotor and driven rotor from the timing chain cover assembly.
      GTY683144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE OIL PUMP RELIEF VALVE
    1. Using a 27 mm socket wrench, remove the oil pump relief valve plug from the oil pump cover.
      GTY292620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the oil pump relief valve spring and oil pump relief valve from the valve hole.
