Components [11/2017 - ]

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

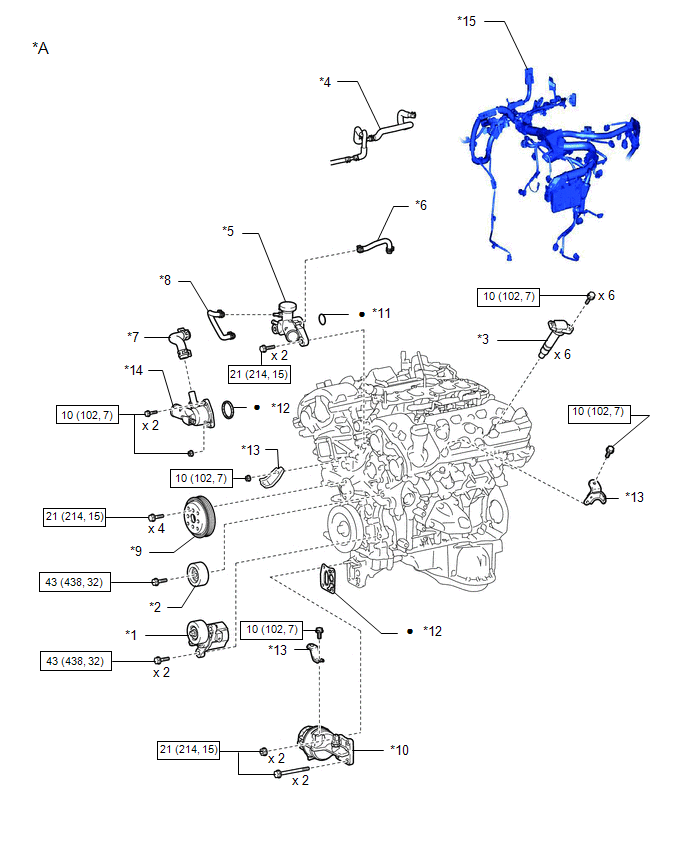

Fig 1: Oil Pump Replacement Components With Torque Specifications [11/2017 - ] (1 Of 8)
GTY831928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for 2WD - -
*1 V-RIBBED BELT TENSIONER ASSEMBLY *2 NO. 2 IDLER PULLEY SUB-ASSEMBLY
*3 IGNITION COIL ASSEMBLY *4 NO. 2 WATER BY-PASS HOSE ASSEMBLY
*5 WATER OUTLET SUB-ASSEMBLY *6 NO. 2 WATER BY-PASS HOSE
*7 NO. 3 WATER BY-PASS HOSE *8 NO. 6 WATER BY-PASS HOSE
*9 WATER PUMP PULLEY *10 OIL FILTER BRACKET SUB-ASSEMBLY
*11 O-RING *12 GASKET
*13 WIRE HARNESS CLAMP BRACKET *14 WATER INLET WITH THERMOSTAT SUB-ASSEMBLY
*15 ENGINE WIRE - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

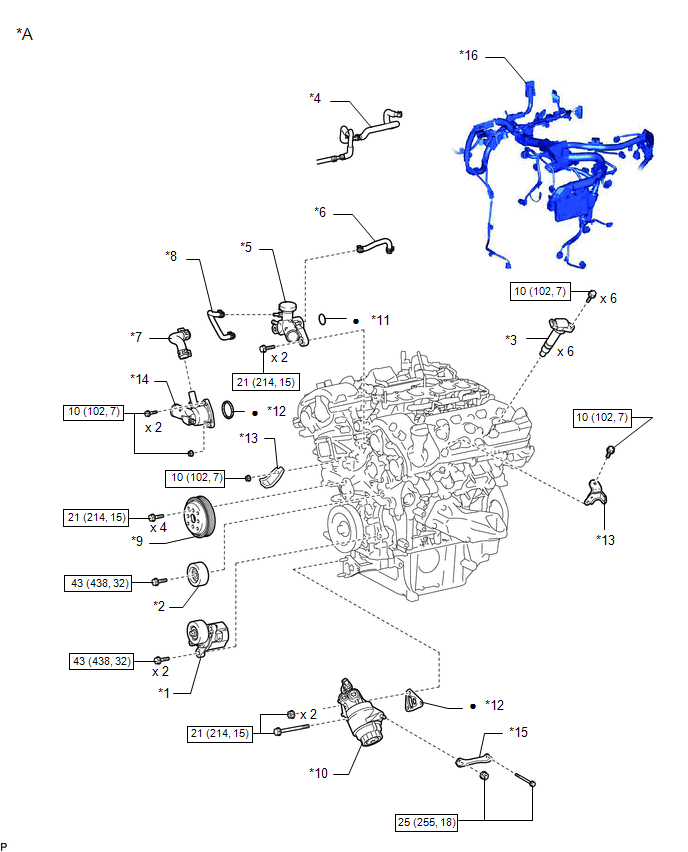

Fig 2: Oil Pump Replacement Components With Torque Specifications [11/2017 - ] (2 Of 8)
GTY810158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for AWD - -
*1 V-RIBBED BELT TENSIONER ASSEMBLY *2 NO. 2 IDLER PULLEY SUB-ASSEMBLY
*3 IGNITION COIL ASSEMBLY *4 NO. 2 WATER BY-PASS HOSE ASSEMBLY
*5 WATER OUTLET SUB-ASSEMBLY *6 NO. 2 WATER BY-PASS HOSE
*7 NO. 3 WATER BY-PASS HOSE *8 NO. 6 WATER BY-PASS HOSE
*9 WATER PUMP PULLEY *10 OIL FILTER BRACKET SUB-ASSEMBLY
*11 O-RING *12 GASKET
*13 WIRE HARNESS CLAMP BRACKET *14 WATER INLET WITH THERMOSTAT SUB-ASSEMBLY
*15 NO. 1 OIL FILTER BRACKET *16 ENGINE WIRE
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

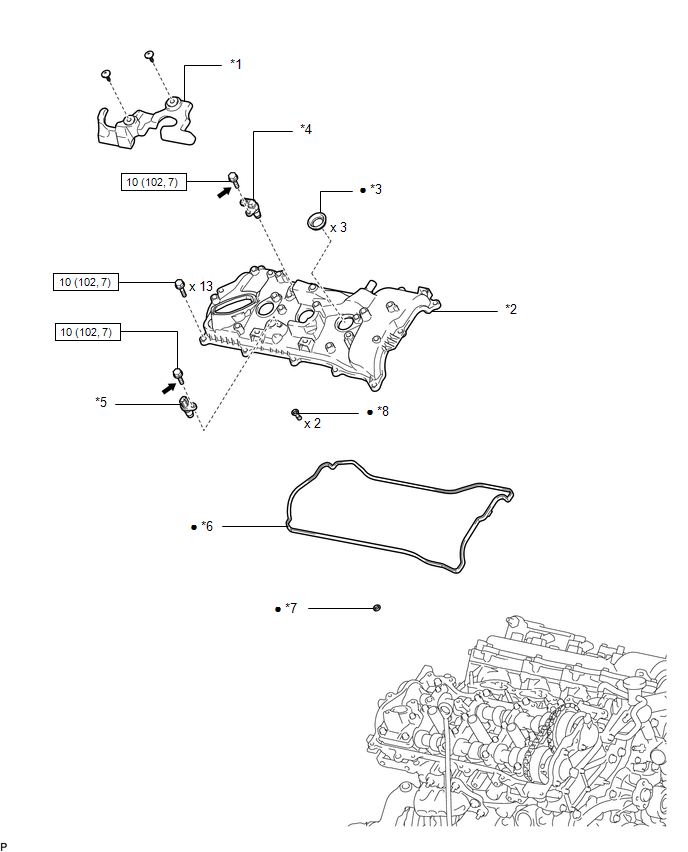

Fig 3: Oil Pump Replacement Components With Torque Specifications [11/2017 - ] (3 Of 8)
GTY812430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 ENGINE COVER SUB-ASSEMBLY *2 CYLINDER HEAD COVER SUB-ASSEMBLY
*3 SPARK PLUG TUBE GASKET *4 VVT SENSOR (for Intake Side of Bank 1)
*5 VVT SENSOR (for Exhaust Side of Bank 1) *6 CYLINDER HEAD COVER GASKET
*7 CAMSHAFT BEARING CAP OIL HOLE GASKET RH *8 GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Adhesive 1324 * Precoated part

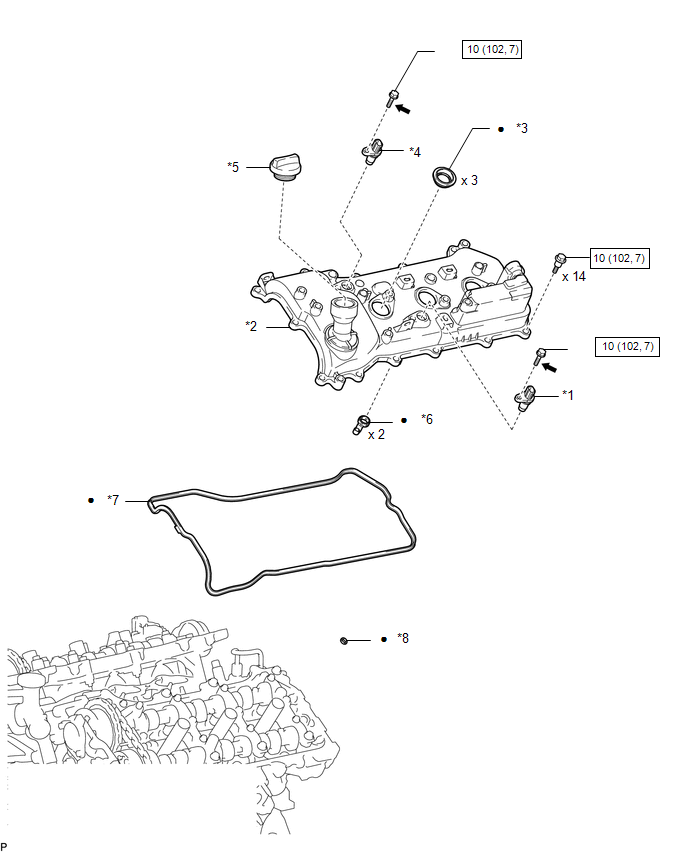

Fig 4: Oil Pump Replacement Components With Torque Specifications [11/2017 - ] (4 Of 8)
GTY803382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 VVT SENSOR (for Exhaust Side of Bank 2) *2 CYLINDER HEAD COVER SUB-ASSEMBLY LH
*3 SPARK PLUG TUBE GASKET *4 VVT SENSOR (for Intake Side of Bank 2)
*5 OIL FILLER CAP SUB-ASSEMBLY *6 GASKET
*7 CYLINDER HEAD COVER GASKET *8 CAMSHAFT BEARING CAP OIL HOLE GASKET LH
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Adhesive 1324 * Precoated part

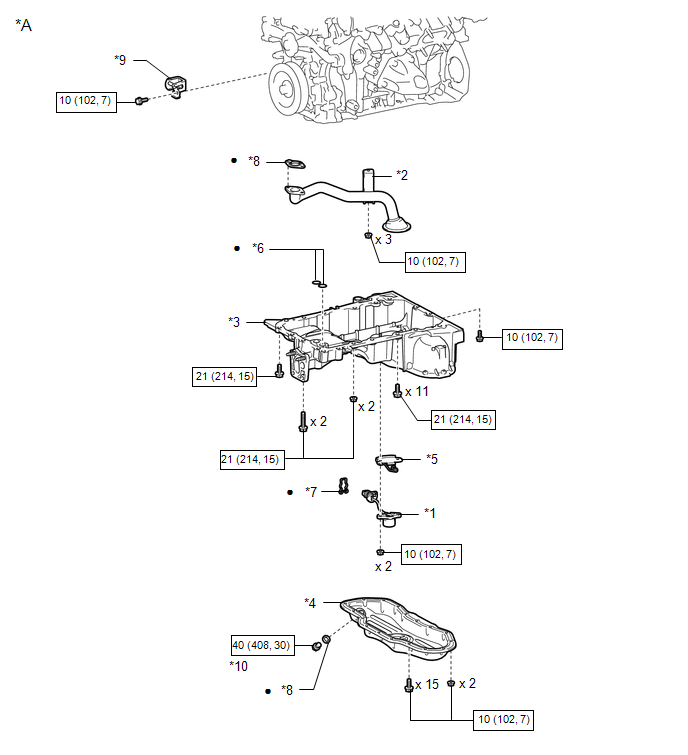

Fig 5: Oil Pump Replacement Components With Torque Specifications [11/2017 - ] (5 Of 8)
GTY778962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for 2WD - -
*1 ENGINE OIL LEVEL SENSOR *2 OIL STRAINER SUB-ASSEMBLY
*3 OIL PAN SUB-ASSEMBLY *4 NO. 2 OIL PAN SUB-ASSEMBLY
*5 OIL LEVEL SENSOR BRACKET *6 O-RING
*7 CLIP *8 GASKET
*9 WIRE HARNESS CLAMP BRACKET *10 OIL PAN DRAIN PLUG
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

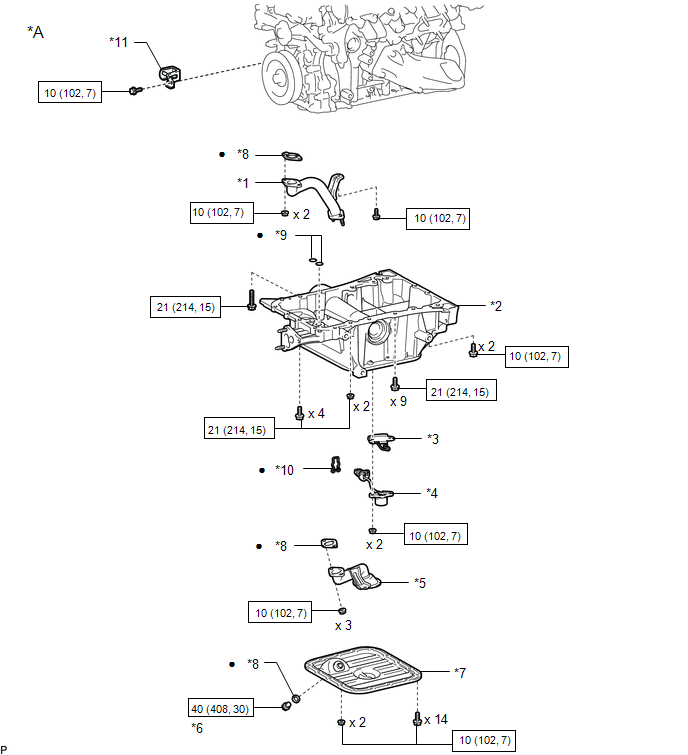

Fig 6: Oil Pump Replacement Components With Torque Specifications [11/2017 - ] (6 Of 8)
GTY796112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for AWD - -
*1 OIL STRAINER SUB-ASSEMBLY *2 OIL PAN SUB-ASSEMBLY
*3 OIL LEVEL SENSOR BRACKET *4 ENGINE OIL LEVEL SENSOR
*5 OIL WITH STRAINER PIPE SUB-ASSEMBLY *6 OIL PAN DRAIN PLUG
*7 NO. 2 OIL PAN SUB-ASSEMBLY *8 GASKET
*9 O-RING *10 CLIP
*11 WIRE HARNESS CLAMP BRACKET - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

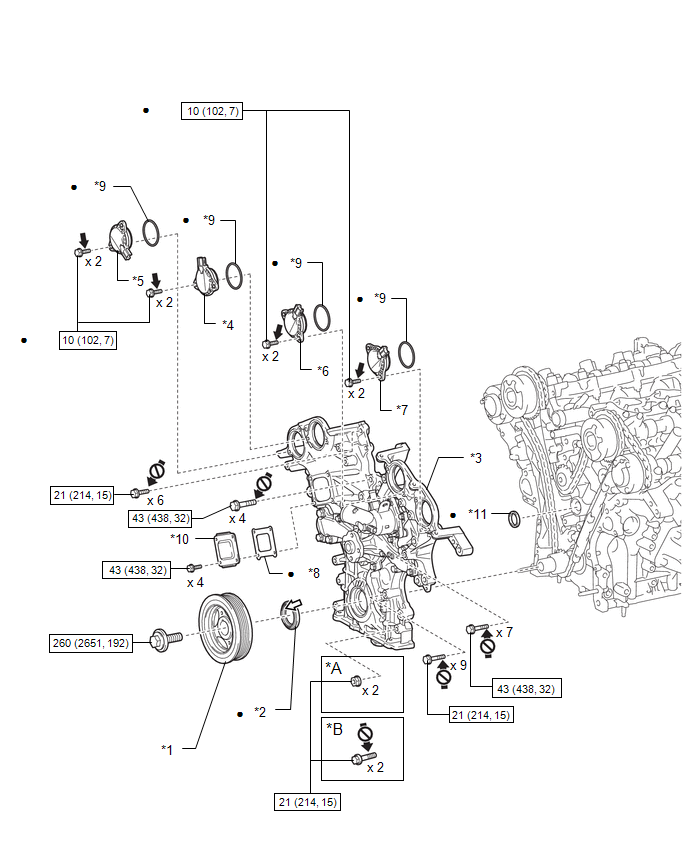

Fig 7: Oil Pump Replacement Components With Torque Specifications [11/2017 - ] (7 Of 8)
GTY948674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Stud Bolt *B w/o Stud Bolt
*1 CRANKSHAFT PULLEY *2 TIMING CHAIN CASE OIL SEAL
*3 TIMING CHAIN COVER ASSEMBLY *4 CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1)
*5 CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1) *6 CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2)
*7 CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2) *8 GASKET
*9 O-RING *10 TIMING CHAIN COVER PLATE
*11 OIL PUMP GASKET - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Adhesive 1324 MP grease
* Precoated part Do not apply lubricants to the threaded parts

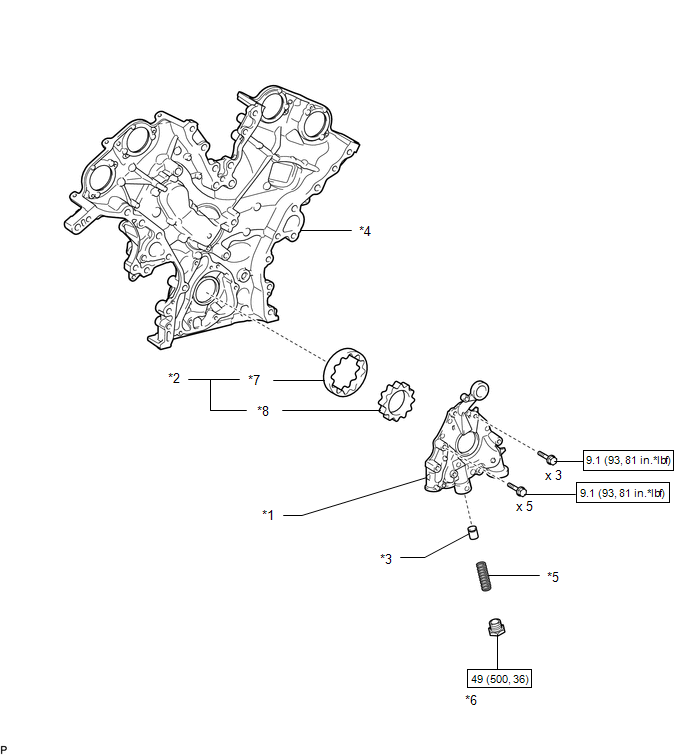

Fig 8: Oil Pump Replacement Components With Torque Specifications [11/2017 - ] (8 Of 8)
GTY776138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OIL PUMP COVER *2 OIL PUMP ROTOR SET
*3 OIL PUMP RELIEF VALVE *4 TIMING CHAIN COVER ASSEMBLY
*5 OIL PUMP RELIEF VALVE SPRING *6 OIL PUMP RELIEF VALVE PLUG
*7 DRIVEN ROTOR *8 DRIVE ROTOR
N.m (kgf/cm, ft.lbf): Specified torque - -
