Components [11/2017 - ]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

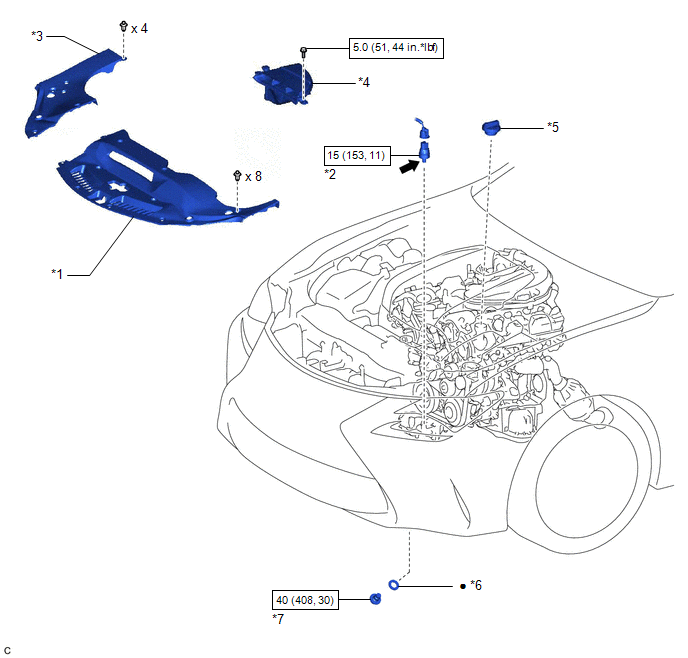

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COOL AIR INTAKE DUCT SEAL | *2 | ENGINE OIL PRESSURE SWITCH ASSEMBLY |
| *3 | ENGINE ROOM SIDE COVER | *4 | INLET NO. 1 AIR CLEANER |
| *5 | OIL FILLER CAP SUB-ASSEMBLY | *6 | GASKET |
| *7 | OIL PAN DRAIN PLUG | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Adhesive 1324 | * | Precoated part |
