High Beam Headlight Circuit [10/2018 - ]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

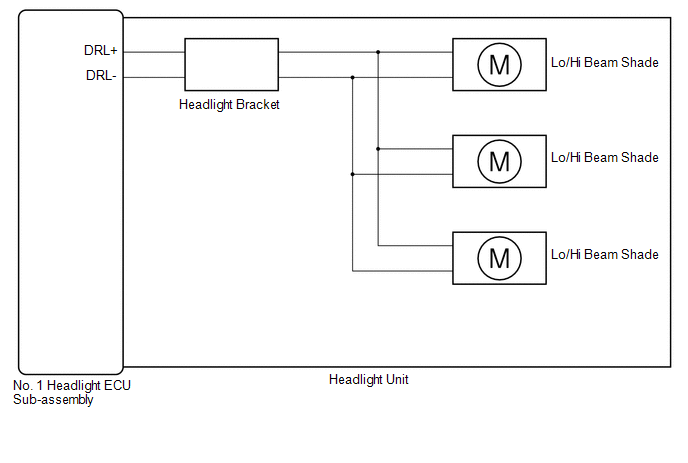

  1. for Triple Beam Headlight
    GTY820528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for Single Beam Headlight
    GTY797403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
