Components [11/2017 - ]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

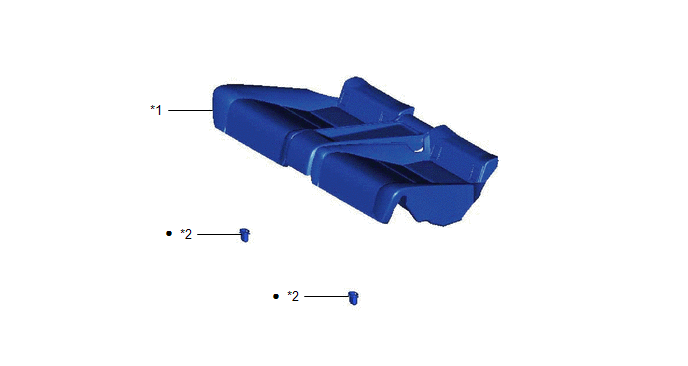

| *1 |
REAR SEAT CUSHION ASSEMBLY |
*2 |
REAR SEAT CUSHION LOCK HOOK |
| • |
Non-reusable part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |
*2 |
FUEL TANK MAIN TUBE SUB-ASSEMBLY |
| *3 |
FUEL PUMP GAUGE RETAINER |
*4 |
REAR FLOOR SERVICE HOLE COVER |
| *5 |
TUBE JOINT CLIP |
*6 |
FUEL RETURN VENT TUBE SUB-ASSEMBLY |
| *7 |
FUEL SUCTION TUBE SET GASKET |
*8 |
NO. 1 FUEL TUBE CLAMP |
| *9 |
BUTYL TAPE |
- |
- |
| • |
Non-reusable part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
FUEL PUMP |
*2 |
FUEL PUMP FILTER |
| *3 |
FUEL SENDER GAUGE ASSEMBLY |
*4 |
NO. 1 FUEL SUB-TANK |
| *5 |
SPRING |
*6 |
E-RING |
| *7 |
O-RING |
*8 |
FUEL PUMP SPACER |
| *9 |
FUEL PUMP HARNESS |
*10 |
FUEL FILTER |
| *11 |
FUEL SUCTION PLATE SUB-ASSEMBLY |
- |
- |
| • |
Non-reusable part |
- |
- |
