Removal [11/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 5

  2. REMOVE SPARE WHEEL COVER TRAY

    Refer to PROCEDURE - Step 6

  3. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 7

  4. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 8

  5. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. REMOVE FRONT UPPER LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 13

  7. REMOVE FUEL PUMP CONTROL ECU
    1. Disengage the 4 claws and open the 2 covers.
      GTY511693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and 2 rope hook assemblies.
      GTY511698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a clip remover, remove the 4 clips.
      GTY520623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the clamp and turn back the luggage compartment trim cover LH.
    5. w/ Dynamic Rear Steering System:

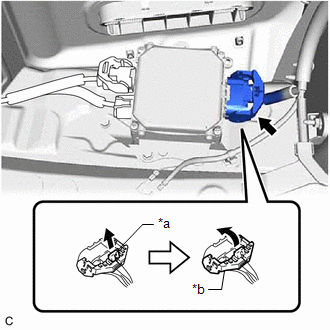

      1. Disconnect the rear steering control ECU connector.
        GTY789454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Lock of the Lock Lever
        *b Lock Lever

        HINT:

        When disconnecting the connector with lock lever, pull out the lock of the lock lever and turn the lock lever as shown in the illustration.

    6. Disconnect the 2 fuel pump control ECU connectors.
      GTY638904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the 2 nuts and fuel pump control ECU from the vehicle body.
      NOTE:

      Do not reuse the fuel pump control ECU if it has been dropped or subjected to a severe impact.

  8. REMOVE FUEL PUMP CONTROL ECU BRACKET
    1. Remove the 2 screws and fuel pump control ECU bracket
      GTY638901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
