INSTALL FUEL PUMP CONTROL ECU BRACKET
1. Install the fuel pump control ECU bracket with the 2 screws.
  Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

INSTALL FUEL PUMP CONTROL ECU

Install the fuel pump control ECU to the vehicle body with the 2 nuts.
Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

NOTE:
Do not reuse the fuel pump control ECU if it has been dropped or subjected to a severe impact.
Connect the 2 fuel pump control ECU connectors.

w/ Dynamic Rear Steering System:

Connect the rear steering control ECU connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

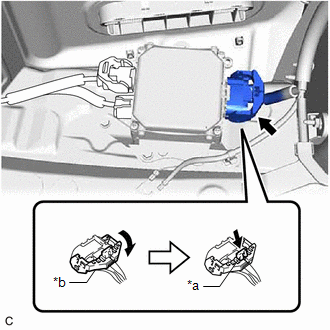

*a	Lock of the Lock Lever
*b	Lock Lever

HINT:

When connecting the connector with lock lever, return the lock lever to its original position and securely push in the lock of the lock lever as shown in the illustration.

Engage the clamp to install the luggage compartment trim cover LH.

Install the 3 clips (A).
Install a new clip (B).
Install the 2 rope hook assemblies with the 2 bolts.
Engage the 4 claws to close the 2 covers.

INSTALL FRONT UPPER LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 9
INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
Refer to PROCEDURE - Step 2
INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 14
INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 15
INSTALL SPARE WHEEL COVER TRAY
Refer to PROCEDURE - Step 16
INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 17
