Components [11/2017 - ]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

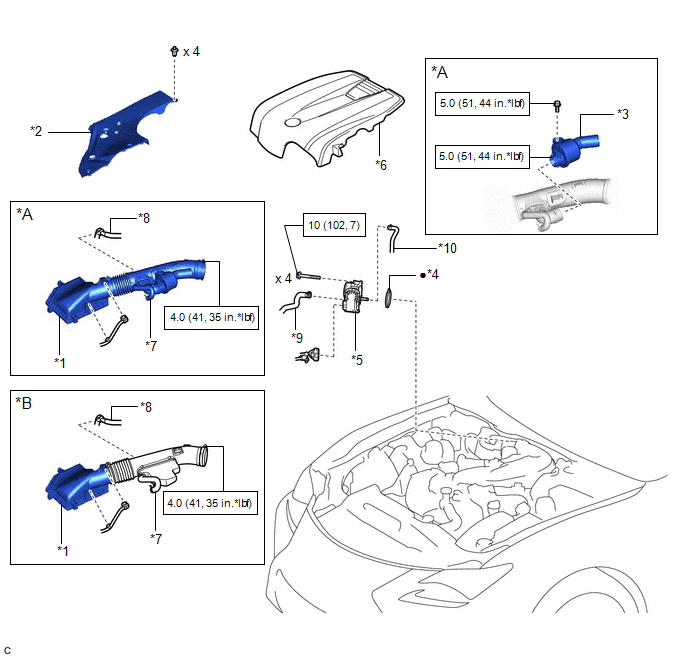

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Intake Air Sound Creator | *B | w/o Intake Air Sound Creator |
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | ENGINE ROOM SIDE COVER |
| *3 | INTAKE AIR SOUND CREATOR | *4 | THROTTLE BODY GASKET |
| *5 | THROTTLE BODY WITH MOTOR ASSEMBLY | *6 | V-BANK COVER SUB-ASSEMBLY |
| *7 | NO. 2 VENTILATION HOSE | *8 | FUEL VAPOR FEED HOSE |
| *9 | NO. 16 WATER BY-PASS HOSE | *10 | WATER BY-PASS HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
