Components [11/2017 - ]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

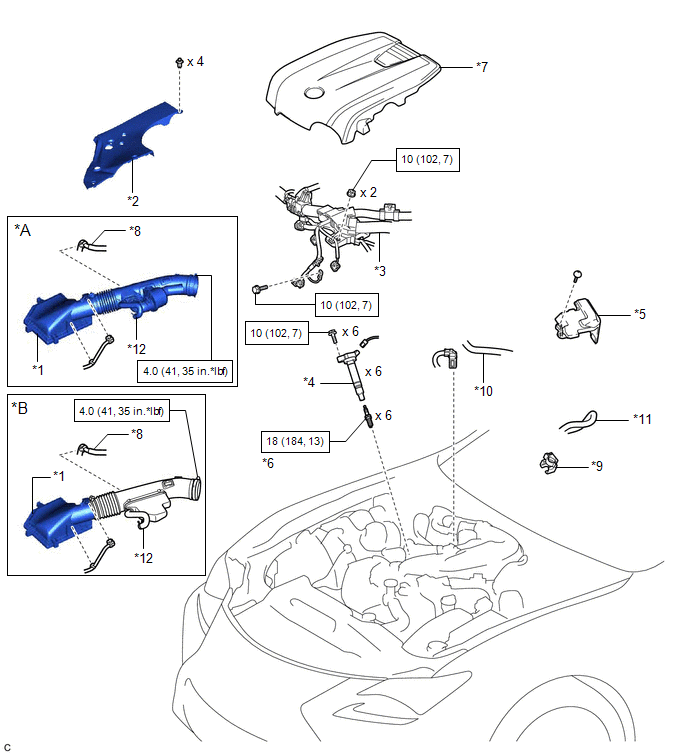

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Intake Air Sound Creator | *B | w/o Intake Air Sound Creator |
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | ENGINE ROOM SIDE COVER |
| *3 | ENGINE WIRE | *4 | IGNITION COIL ASSEMBLY |
| *5 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *6 | SPARK PLUG |
| *7 | V-BANK COVER SUB-ASSEMBLY | *8 | FUEL VAPOR FEED HOSE |
| *9 | FUEL HOSE CLAMP | *10 | FUEL TUBE SUB-ASSEMBLY |
| *11 | NO. 2 FUEL TUBE SUB-ASSEMBLY | *12 | NO. 2 VENTILATION HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
