Components [11/2017 - ]

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

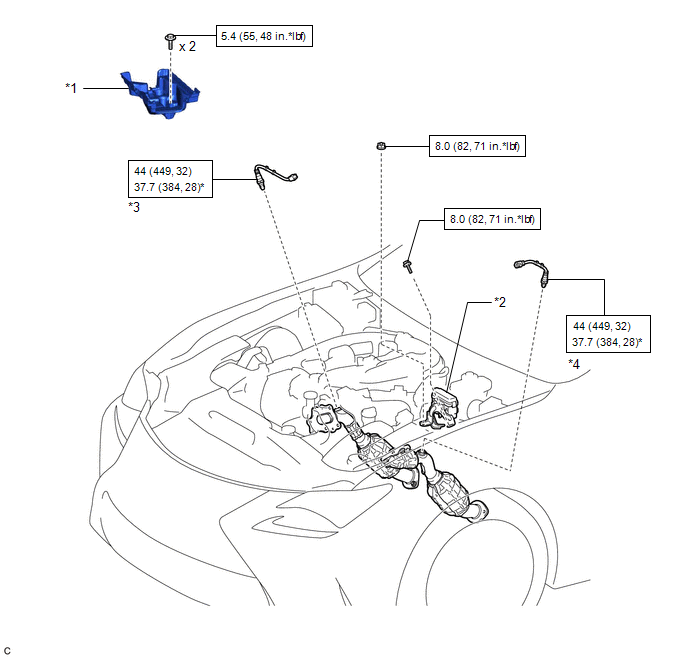

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications

Callout	Description	Callout	Description
*1	BATTERY TRAY	*2	NO. 3 ENGINE ROOM RELAY BLOCK
*3	AIR FUEL RATIO SENSOR (for Bank 1)	*4	AIR FUEL RATIO SENSOR (for Bank 2)
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
