Reassembly [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

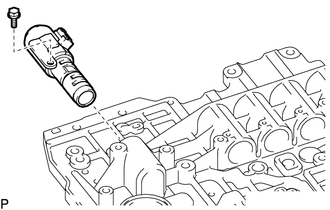

  1. INSTALL ELECTROMAGNETIC OIL PUMP (w/ Stop And Start System)
    1. Coat the O-ring of the electromagnetic oil pump with ATF.
    2. Install the electromagnetic oil pump to the transmission valve body assembly with the bolt.
      GTY662300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.4 N.m (65 kgf/cm, 57 in.lbf)

      NOTE:
      • When reusing the electromagnetic oil pump, inspect the O-ring.
      • Make sure that the O-ring is not cracked or jammed when installing the electromagnetic oil pump.
  2. INSTALL SOLENOID (SL5) VALVE
    GTY683489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the solenoid (SL5) valve to the transmission valve body assembly.
    2. Install the straight pin.
  3. INSTALL SOLENOID (SL3) VALVE
    GTY662301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the solenoid (SL3) valve to the transmission valve body assembly.
    2. Install the straight pin.
  4. INSTALL SOLENOID (SL4) VALVE
    GTY662302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the solenoid (SL4) valve to the transmission valve body assembly.
    2. Install the straight pin.
  5. INSTALL SOLENOID (SL2) VALVE
    1. Install the solenoid (SL2) valve to the transmission valve body assembly.
      GTY662304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the straight pin.
  6. INSTALL SOLENOID (SL1) VALVE
    GTY662305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the solenoid (SL1) valve to the transmission valve body assembly.
    2. Install the straight pin.
  7. INSTALL SOLENOID (SLT) VALVE
    GTY683490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the solenoid (SLT) valve to the transmission valve body assembly.
    2. Install the straight pin.
  8. INSTALL SOLENOID (SLU) VALVE
    GTY662236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the solenoid (SLU) valve to the transmission valve body assembly.
    2. Install the straight pin.
  9. INSTALL SOLENOID LOCK PLATE
    1. Install the solenoid lock plate to the transmission valve body assembly with the 3 bolts.
      GTY662238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.4 N.m (65 kgf/cm, 57 in.lbf)

  10. INSTALL SOLENOID (SC2) VALVE
    1. Install the solenoid (SC2) valve to the transmission valve body assembly with the bolt.
      GTY683475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.4 N.m (65 kgf/cm, 57 in.lbf)

  11. INSTALL SOLENOID (SC1) VALVE
    1. Install the solenoid (SC1) valve to the transmission valve body assembly with the bolt.
      GTY662239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.4 N.m (65 kgf/cm, 57 in.lbf)
