Components [10/2015 - ]
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

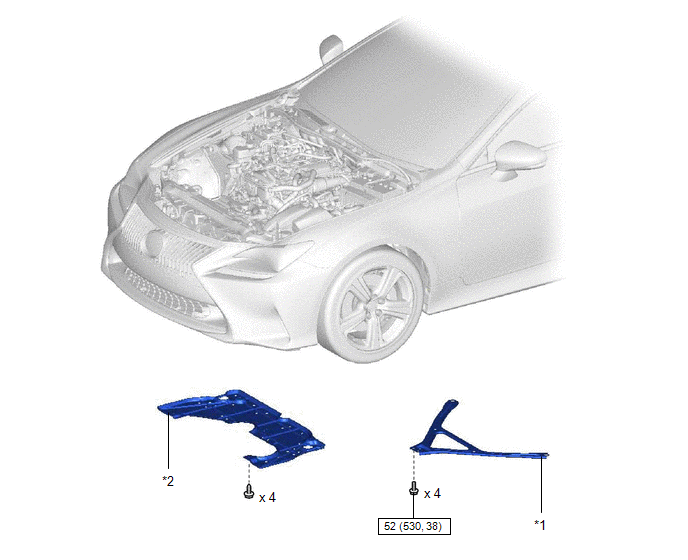

| Callout |
Description |
Callout |
Description |
| *1 |
FRONT SUSPENSION MEMBER BRACE |
*2 |
NO. 2 ENGINE UNDER COVER |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

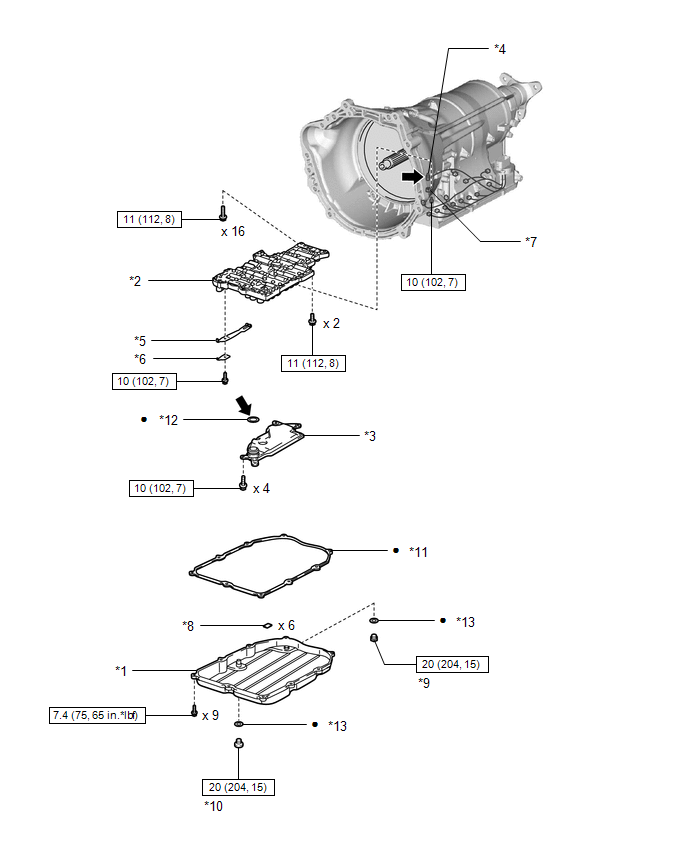

| Callout |
Description |
Callout |
Description |
| *1 |
AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY |
*2 |
TRANSMISSION VALVE BODY ASSEMBLY |
| *3 |
VALVE BODY OIL STRAINER ASSEMBLY |
*4 |
ATF TEMPERATURE SENSOR |
| *5 |
DETENT SPRING |
*6 |
DETENT SPRING COVER |
| *7 |
LOCK PLATE |
*8 |
TRANSMISSION OIL CLEANER MAGNET |
| *9 |
DRAIN PLUG |
*10 |
OVERFLOW PLUG |
| *11 |
AUTOMATIC TRANSMISSION OIL PAN GASKET |
*12 |
O-RING |
| *13 |
GASKET |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
Toyota Genuine ATF WS |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

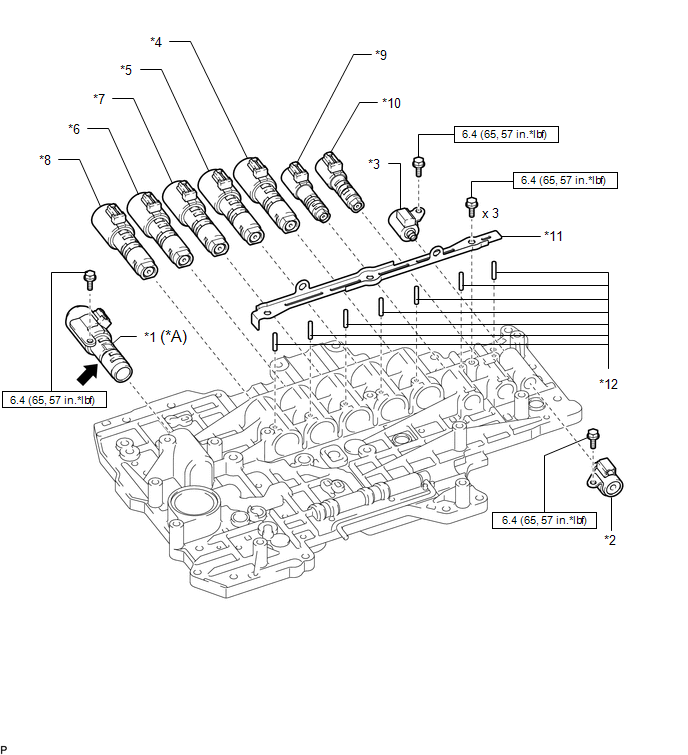

| Callout |
Description |
Callout |
Description |
| *A |
w/ Stop And Start System |
- |
- |
| *1 |
ELECTROMAGNETIC OIL PUMP |
*2 |
SOLENOID (SC1) VALVE |
| *3 |
SOLENOID (SC2) VALVE |
*4 |
SOLENOID (SL1) VALVE |
| *5 |
SOLENOID (SL2) VALVE |
*6 |
SOLENOID (SL3) VALVE |
| *7 |
SOLENOID (SL4) VALVE |
*8 |
SOLENOID (SL5) VALVE |
| *9 |
SOLENOID (SLT) VALVE |
*10 |
SOLENOID (SLU) VALVE |
| *11 |
SOLENOID LOCK PLATE |
*12 |
STRAIGHT PIN |
|
N.m (kgf/cm, ft.lbf): Specified torque |
|
Toyota Genuine ATF WS |
