Removal [09/2014 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

  2. REMOVE TRANSMISSION WIRE

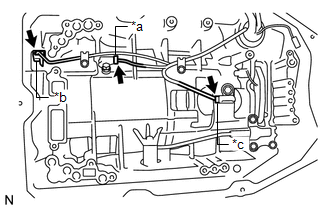

    1. Disconnect the transmission revolution sensor (NC3) connector.
      GTY505808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Transmission Revolution Sensor (NC3) Connector
      *b Transmission Revolution Sensor (NT) Connector
      *c Transmission Revolution Sensor (SP2) Connector
    2. Disconnect the transmission revolution sensor (NT) connector.
    3. Disconnect the transmission revolution sensor (SP2) connector.
    4. Disconnect the transmission wire connector.

      HINT:

      Disengage the claw, pull down the lever, and then disconnect the transmission wire connector.

      GTY107394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the bolt and transmission wire.
      GTY466949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
