Removal [09/2014 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
    1. Move the shift lever to N.
    2. Remove the clip and pin, and disconnect the floor shift gear shifting rod sub-assembly from the transmission control shaft lever RH.
      GTY508299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin
  2. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Disconnect the park/neutral position switch assembly connector.
      GTY458342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut, spring washer and transmission control shaft lever RH from the manual valve lever shaft.
      GTY458032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

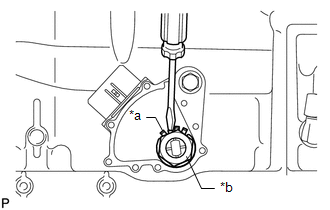

    3. Using a screwdriver, bend back the tabs of the lock washer and remove the lock nut and lock washer from the park/neutral position switch assembly.
      GTY497060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lock Washer
      *b Lock Nut
    4. Remove the bolt and park/neutral position switch assembly from the automatic transmission assembly.

      HINT:

      Make sure that the manual valve lever shaft has not been rotated prior to installing the park/neutral position switch assembly as the detent spring may become detached from the manual valve lever shaft.

      GTY470862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
