Components [11/2017 - ]
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Automatic Transmission Assembly (For 2GR) Replacement Components With Torque Specifications [11/2017 - ] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT SUSPENSION MEMBER BRACE | *2 | NO. 1 ENGINE UNDER COVER ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

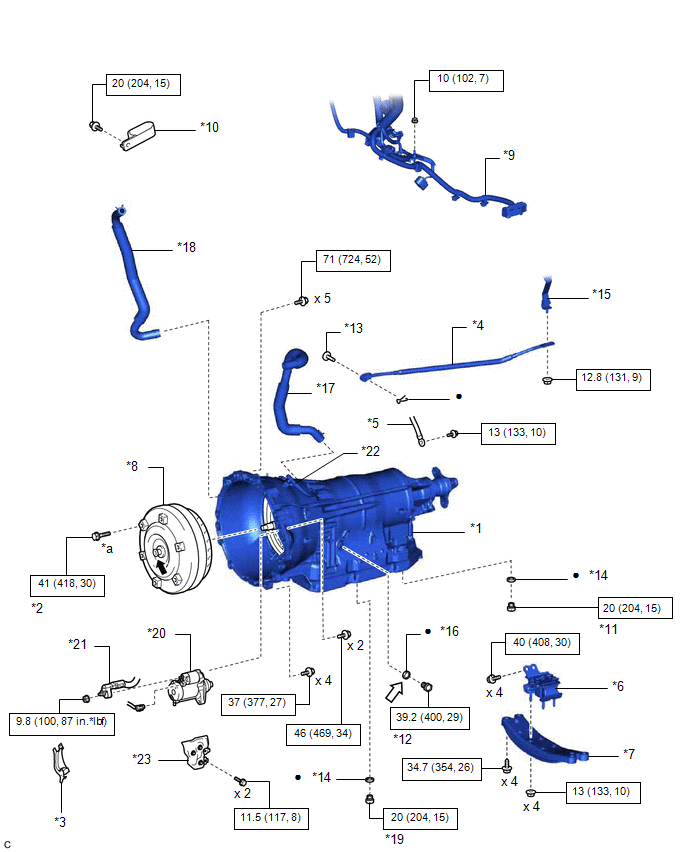

Fig 2: Automatic Transmission Assembly (For 2GR) Replacement Components With Torque Specifications [11/2017 - ] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | AUTOMATIC TRANSMISSION ASSEMBLY | *2 | DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT |
| *3 | FLYWHEEL HOUSING SIDE COVER | *4 | FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY |
| *5 | NO. 2 EARTH WIRE | *6 | REAR ENGINE MOUNTING INSULATOR ASSEMBLY |
| *7 | REAR ENGINE MOUNTING MEMBER | *8 | TORQUE CONVERTER ASSEMBLY |
| *9 | WIRE HARNESS | *10 | HOSE CLAMP |
| *11 | DRAIN PLUG | *12 | REFILL PLUG |
| *13 | PIN | *14 | GASKET |
| *15 | LEVER | *16 | O-RING |
| *17 | WATER BY-PASS HOSE | *18 | NO. 2 WATER BY-PASS HOSE |
| *19 | OVERFLOW PLUG | *20 | STARTER ASSEMBLY |
| *21 | TERMINAL CAP | *22 | BREATHER PLUG HOSE |
| *23 | STARTER COVER | - | - |
| *a | Black: x 1 Silver: x 5 |
- | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Clutch spline grease | Toyota Genuine ATF WS |
