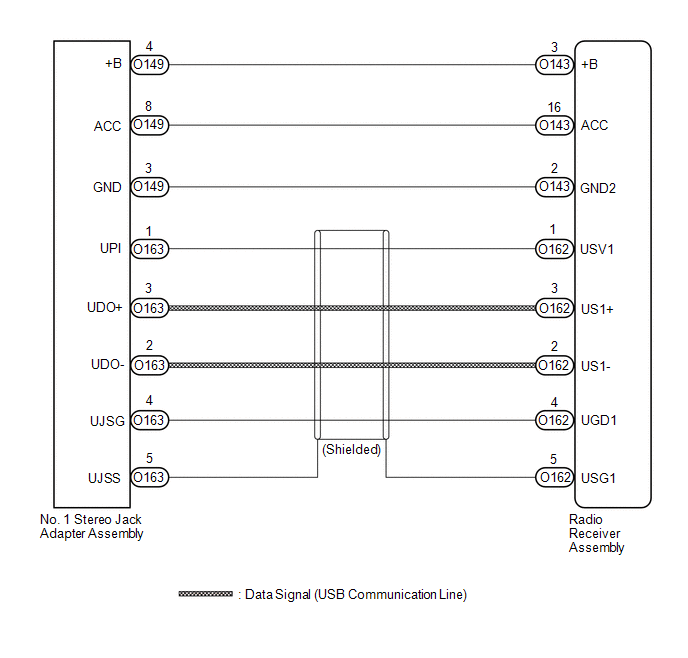

USB Audio System Recognition/Play Error [11/2017 - ]: Wiring Diagram

GTY820864

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
