Components [10/2022 - ]

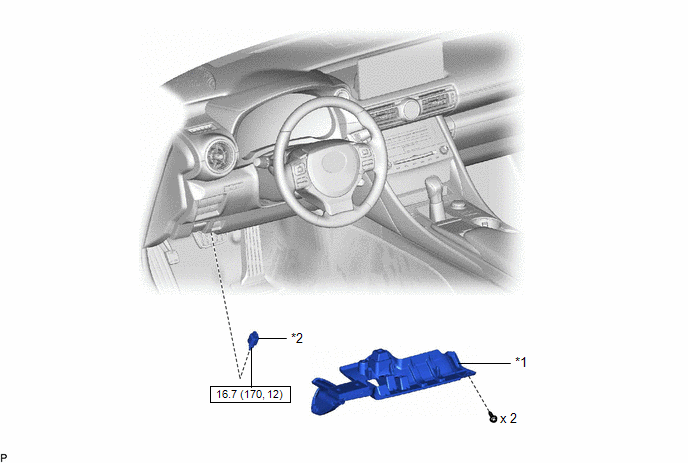

Fig 1: Stop Light Switch Replacement Components With Torque Specifications [10/2022 - ]
GTY1138538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY *2 STOP LIGHT SWITCH ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque - -
