DTC B15C3: Speaker Output Short [10/2014 - 09/2017]: Wiring Diagram

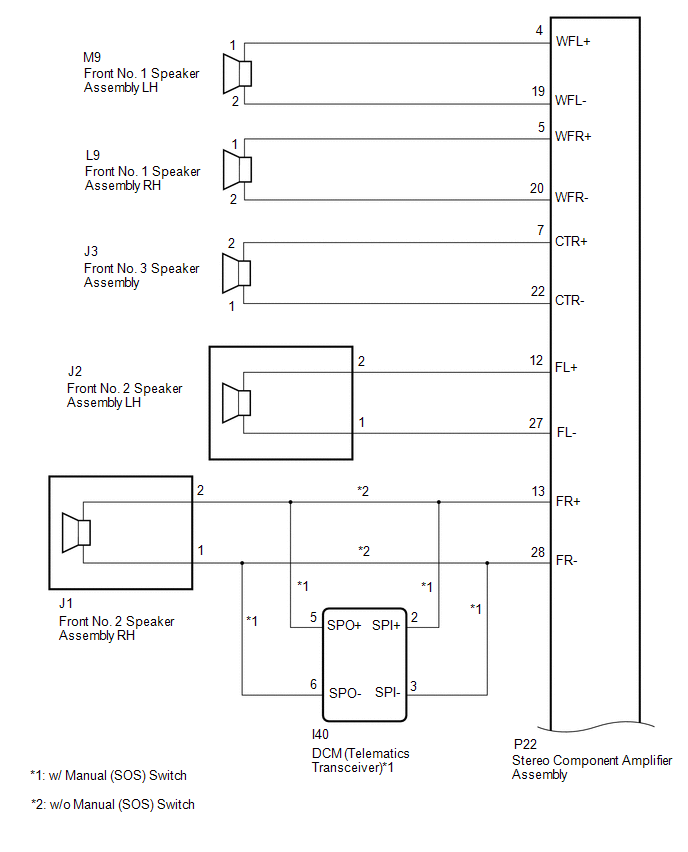

GTY505691

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

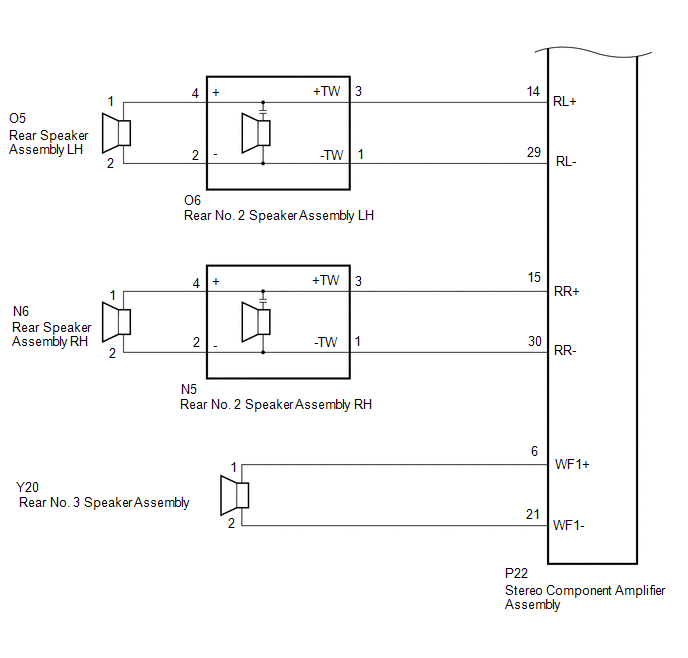

GTY519827

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
