Disassembly [09/2015 - ]: Procedure
- REMOVE OIL PRESSURE SENDER GAUGE ASSEMBLY
Refer to PROCEDURE - Step 5
- REMOVE OIL FILTER ELEMENT
Refer to PROCEDURE - Step 4 [09/2015 - 08/2020] , or refer to PROCEDURE - Step 4 [08/2020 - ]
- REMOVE NO. 1 OIL COOLER BRACKET (w/ Oil Cooler)
Refer to PROCEDURE - Step 15
- REMOVE OIL FILTER BRACKET (w/ Oil Cooler)
Refer to PROCEDURE - Step 16
- REMOVE OIL FILTER BRACKET (w/o Oil Cooler)
Refer to PROCEDURE - Step 29
- REMOVE OIL FILLER CAP SUB-ASSEMBLY
- REMOVE OIL FILLER CAP HOUSING
- REMOVE SPARK PLUG
- Using a 16 mm plug wrench, remove the 8 spark plugs.
- REMOVE VVT SENSOR
- REMOVE CAMSHAFT POSITION SENSOR
- REMOVE CRANK POSITION SENSOR PROTECTOR
- Remove the 2 bolts and sensor protector.
- REMOVE CRANKSHAFT POSITION SENSOR
- REMOVE ENGINE OIL LEVEL SENSOR
Refer to PROCEDURE - Step 7
- REMOVE CAMSHAFT OIL CONTROL VALVE ASSEMBLY
- REMOVE WATER PUMP PULLEY
Refer to PROCEDURE - Step 15
- REMOVE NO. 1 IDLER PULLEY SUB-ASSEMBLY
Refer to PROCEDURE - Step 42
- REMOVE FLUID COUPLING BRACKET
Refer to PROCEDURE - Step 43
- REMOVE V-RIBBED BELT TENSIONER ASSEMBLY
Refer to PROCEDURE - Step 44
- REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 46
- REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY RH
Refer to PROCEDURE - Step 47
- REMOVE OIL CONTROL VALVE FILTER
- REMOVE SPARK PLUG TUBE GASKET
- Bend the 4 ventilation baffle plate claws on the cylinder head cover to an angle of 90° or more.

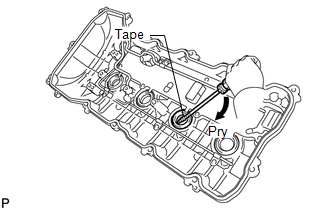

- Using a screwdriver, pry out the gaskets.
HINT:
Tape the screwdriver tip before use.
NOTE:- Be careful not to damage the cylinder head cover.
- Be careful not to damage the gasket when removing it, as the removed gasket needs to be used when installing a new one.
- REMOVE CRANKSHAFT PULLEY
Refer to PROCEDURE - Step 49
- REMOVE WATER PUMP ASSEMBLY
Refer to PROCEDURE - Step 16
- REMOVE TIMING CHAIN COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 52
- REMOVE WATER INLET PIPE
Refer to PROCEDURE - Step 53
- REMOVE FRONT CRANKSHAFT OIL SEAL
- SET NO. 1 CYLINDER TO TDC/COMPRESSION
- Temporarily install the crankshaft pulley bolt.
- Rotate the crankshaft clockwise so that the timing marks on the crankshaft timing sprocket and camshaft timing gears are as shown in the illustration.
HINT:
If the timing marks do not align, rotate the crankshaft clockwise again and align the timing marks.

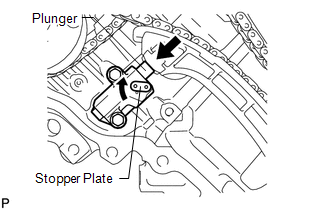

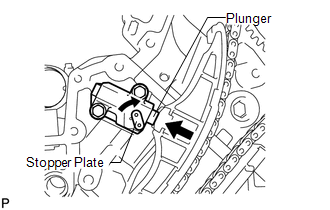

- REMOVE NO. 1 CHAIN TENSIONER ASSEMBLY LH
- REMOVE NO. 1 CHAIN TENSIONER SLIPPER LH
- REMOVE NO. 1 CHAIN VIBRATION DAMPER LH
- Remove the 2 bolts and chain vibration damper.
- REMOVE NO. 1 CHAIN SUB-ASSEMBLY LH

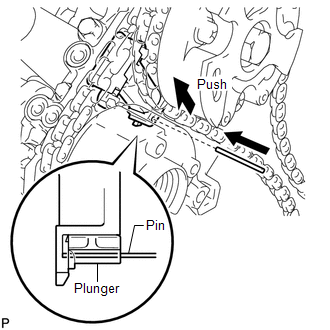

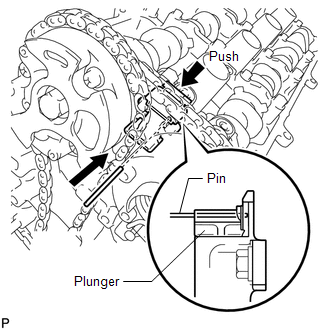

- While pushing down the No. 3 chain tensioner, insert a pin of 1.0 mm (0.0394 in.) into the hole to fix it in place.

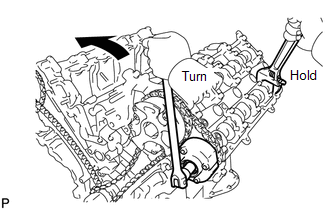

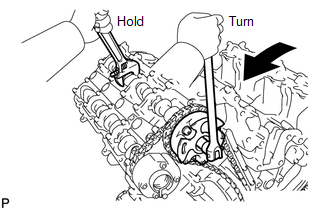

Hold the hexagonal portion of the camshaft with a wrench and loosen the bolt.
NOTE:- Be careful not to damage the cylinder head with the wrench.
- Do not disassemble the camshaft timing gear.
Hold the hexagonal portion of the camshaft with a wrench and loosen the bolt.
NOTE:Be careful not to damage the cylinder head with the wrench.
- Remove the 2 bolts. Then with the No. 1 and No. 2 chains still connected to the gears, remove the camshaft timing gear, camshaft timing exhaust gear and crankshaft timing sprocket LH.
- Remove the No. 1 and No. 2 chains from the gears.
- REMOVE NO. 3 CHAIN TENSIONER ASSEMBLY
- Remove the 2 bolts and chain tensioner.

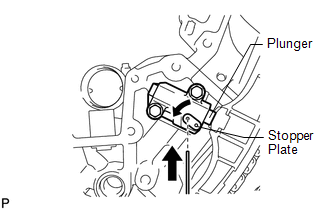

- REMOVE NO. 1 CHAIN TENSIONER ASSEMBLY RH
- REMOVE NO. 1 CHAIN TENSIONER SLIPPER RH
- REMOVE NO. 1 CHAIN VIBRATION DAMPER RH
- Remove the 2 bolts and vibration damper.
- REMOVE NO. 1 CHAIN SUB-ASSEMBLY RH

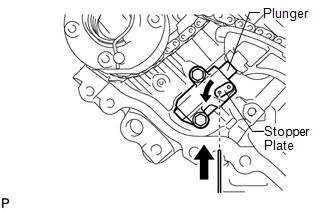

- While raising up the No. 2 chain tensioner, insert a pin of 1.0 mm (0.0394 in.) into the hole to fix it in place.

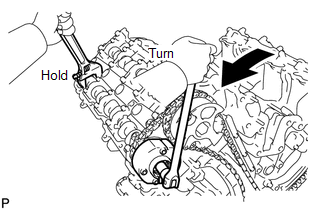

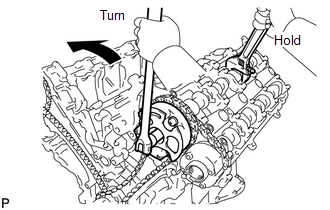

Hold the hexagonal portion of the camshaft with a wrench and loosen the bolt.
NOTE:- Be careful not to damage the cylinder head with the wrench.
- Do not disassemble the camshaft timing gear.
Hold the hexagonal portion of the camshaft with a wrench and loosen the bolt.
NOTE:Be careful not to damage the cylinder head with the wrench.
- Remove the 2 bolts. Then with the No. 1 and No. 2 chains still connected to the gears, remove the camshaft timing gear, camshaft timing exhaust gear and crankshaft timing sprocket RH.
- Remove the No. 1 and No. 2 chains from the gears.
- REMOVE NO. 2 CHAIN TENSIONER ASSEMBLY
- Remove the 2 bolts and chain tensioner.
- REMOVE CRANKSHAFT TIMING GEAR KEY
- Using a screwdriver, remove the 2 timing gear keys from the crankshaft.
- REMOVE CAMSHAFT BEARING CAP LH
See step 73
- REMOVE CAMSHAFT HOUSING SUB-ASSEMBLY LH
See step 74
- REMOVE CAMSHAFT BEARING CAP RH
See step 75
- REMOVE CAMSHAFT HOUSING SUB-ASSEMBLY RH
See step 76
- REMOVE NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
- Remove the 32 valve rocker arms from the cylinder heads.
HINT:
Arrange the removed parts in the correct order.
- Remove the 32 valve rocker arms from the cylinder heads.
- REMOVE VALVE LASH ADJUSTER ASSEMBLY
- Remove the 32 valve lash adjusters from the cylinder heads.
HINT:
Arrange the removed parts in the correct order.
- Remove the 32 valve lash adjusters from the cylinder heads.
- REMOVE VALVE STEM CAP
- Remove the 32 valve stem caps from the cylinder heads.
HINT:
Arrange the removed parts in the correct order.
- Remove the 32 valve stem caps from the cylinder heads.
- REMOVE CYLINDER HEAD SUB-ASSEMBLY LH
See step 9
- REMOVE CYLINDER HEAD SUB-ASSEMBLY RH
See step 10
- REMOVE CYLINDER BLOCK WATER JACKET SPACER
- Remove the 2 water jacket spacers from the cylinder block.NOTE:
Be sure to remove the water jacket spacers. If not, they may fall and become damaged when the cylinder block is inverted.
- Remove the 2 water jacket spacers from the cylinder block.
- REMOVE VENTILATION PIPE GASKET
- REMOVE NO. 1 HEAT EXCHANGER COVER
- REMOVE NO. 2 OIL PAN SUB-ASSEMBLY
- REMOVE NO. 1 OIL PAN SUB-ASSEMBLY

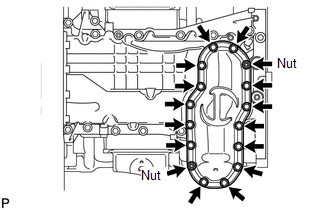

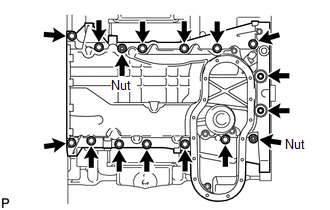

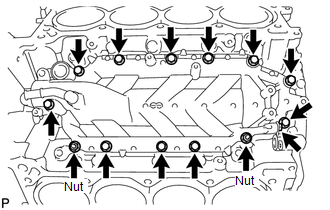

Remove the 14 bolts and 2 nuts.
HINT:
Be sure to clean the bolts and stud bolts, and check the threads for cracks or other damage.

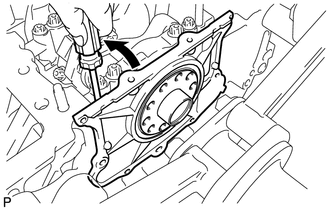

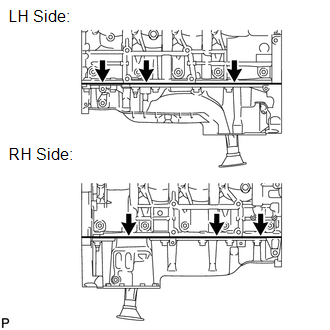

Remove the oil pan by prying between the oil pan and cylinder block with a screwdriver.
HINT:
Tape the screwdriver tip before use.
NOTE:Be careful not to damage the contact surfaces of the cylinder block and oil pan.
- REMOVE NO. 1 OIL PAN BAFFLE PLATE
- REMOVE OIL STRAINER SUB-ASSEMBLY
- REMOVE ENGINE REAR OIL SEAL RETAINER
- REMOVE OIL DRAIN PIPE SUB-ASSEMBLY

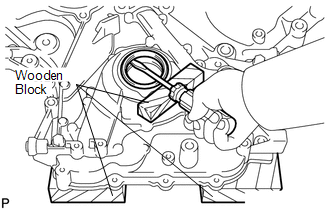

- REMOVE REAR CRANKSHAFT OIL SEAL
- REMOVE RING PIN NOTE:
It is not necessary to remove the ring pin unless it is being replaced.
- REMOVE STUD BOLT NOTE:
If the stud bolt is deformed or its threads are damaged, replace it.
