Parts Location [08/2017 - ]: Illustration

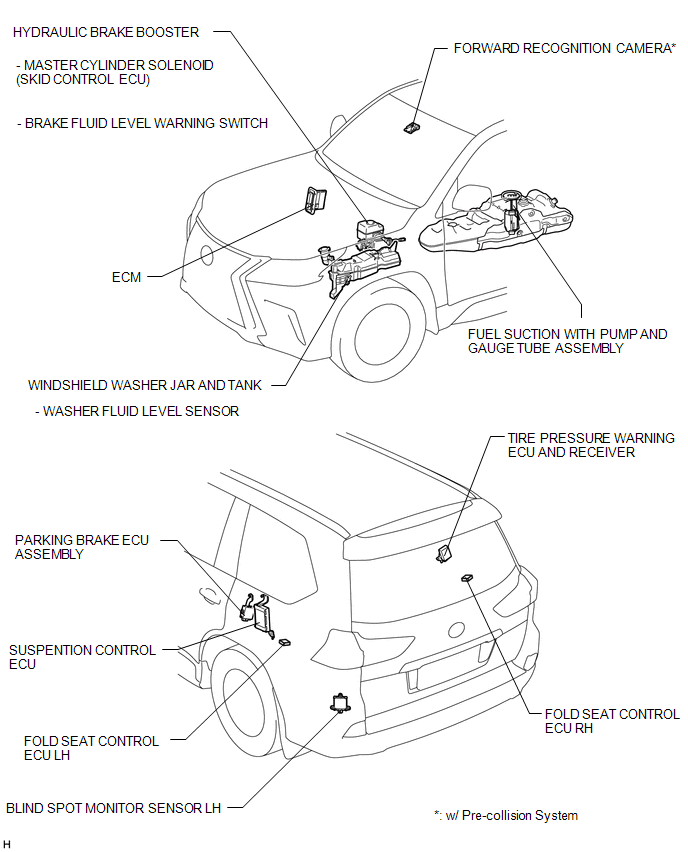

GTY824783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

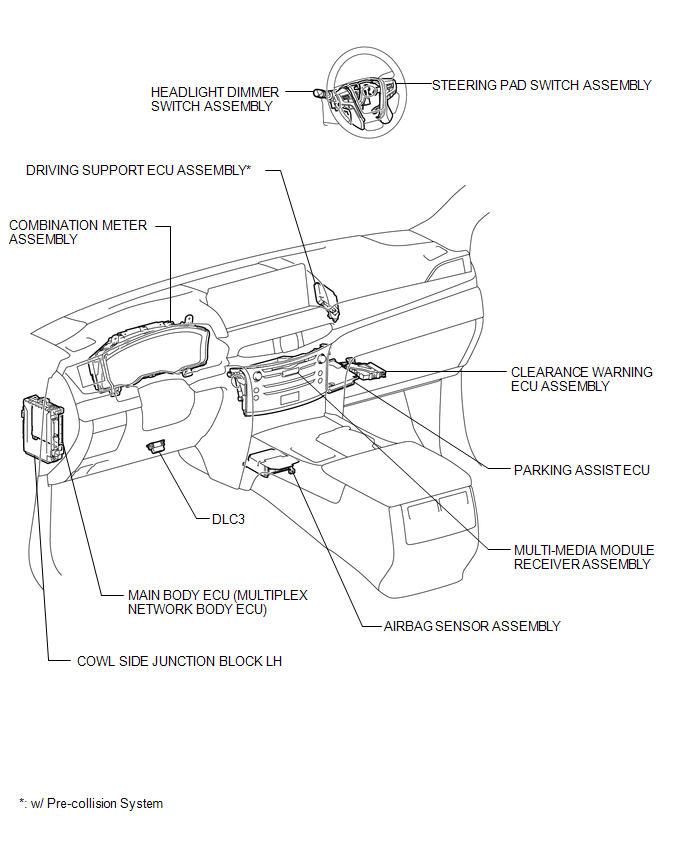

GTY834455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

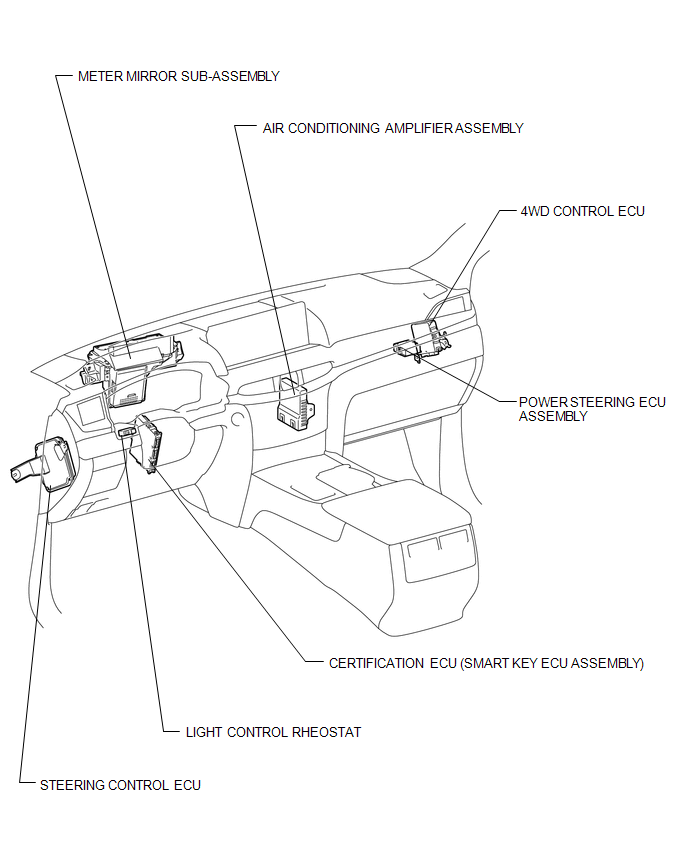

GTY832031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

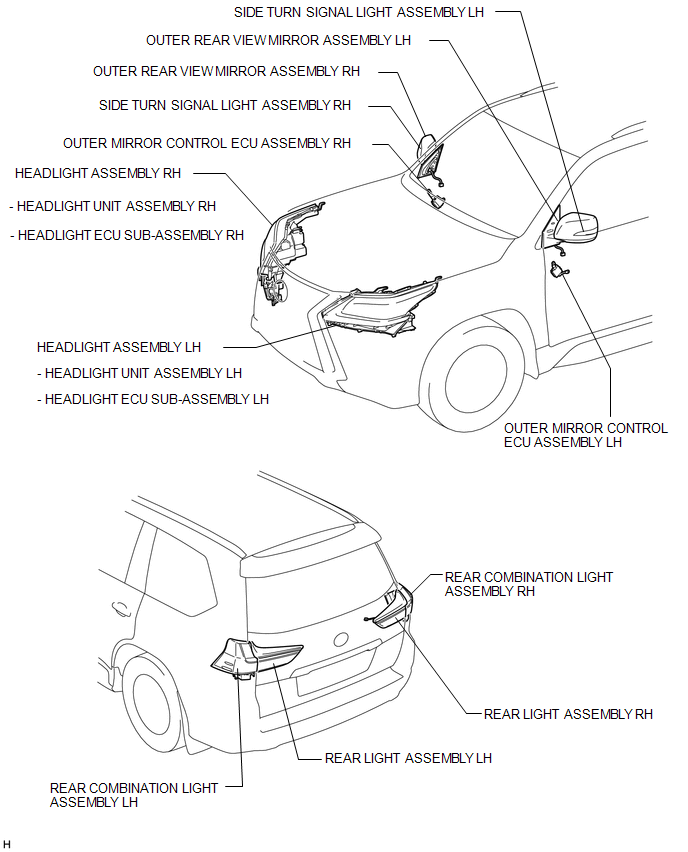

GTY782871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


GTY676584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
