Removal [09/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    (Refer to REMOVAL [09/2015 - ] )

  2. REMOVE FRONT FLOOR NO. 1 HEAT INSULATOR

    Refer to PROCEDURE - Step 2

  3. DISCONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
    1. Move the shift lever to N.
    2. Remove the nut and disconnect the shifting rod from the connecting rod swivel.

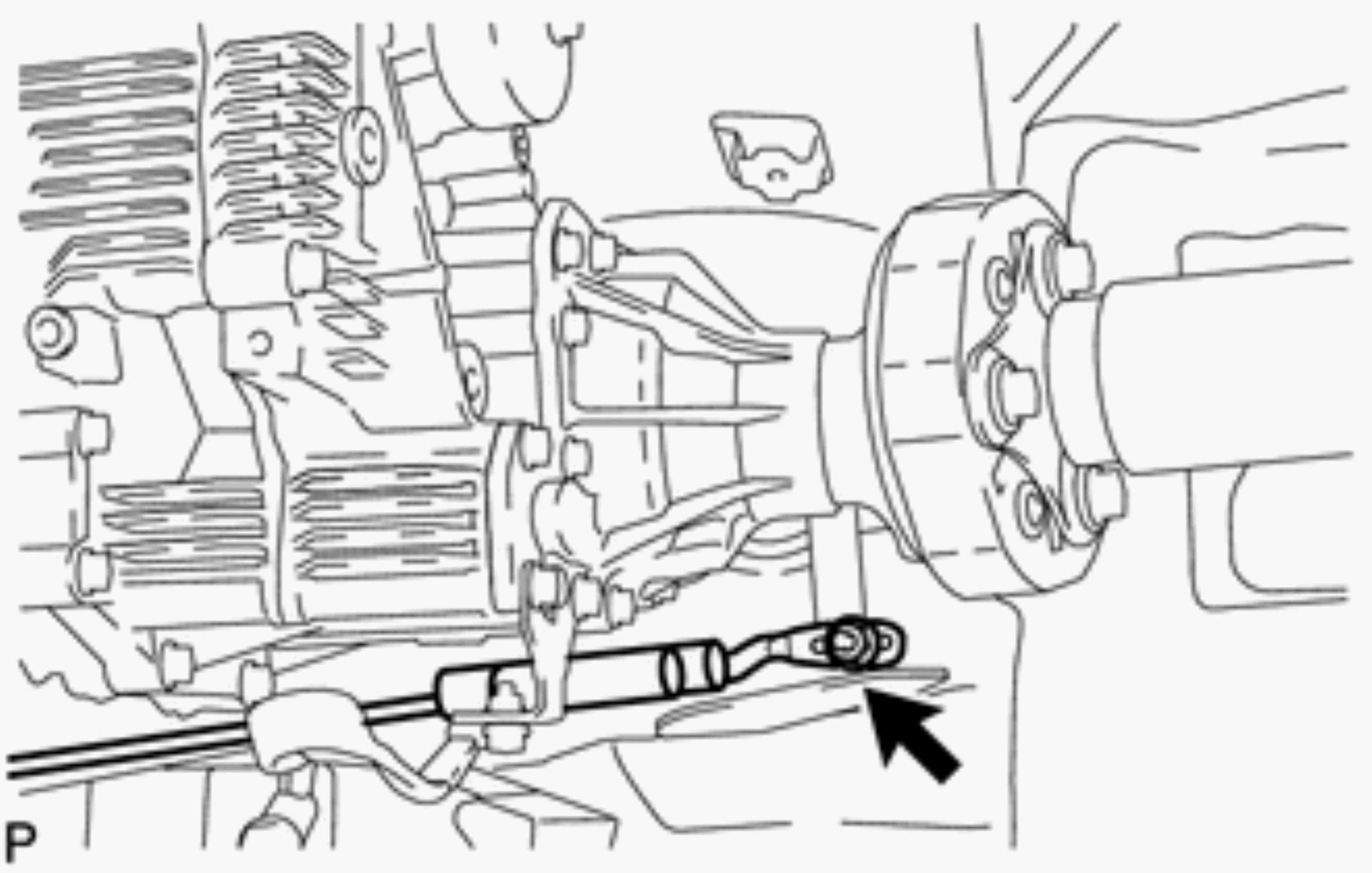

      GTY685866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE CONSOLE BOX ASSEMBLY

    w/ Rear Seat Entertainment System: (Refer to REMOVAL [09/2015 - ] )

    w/o Rear Seat Entertainment System: (Refer to REMOVAL [09/2015 - ] )

  5. REMOVE NO. 1 CONSOLE BOX DUCT
    1. Disconnect the 2 wire harness clamps from the No. 1 console box duct.

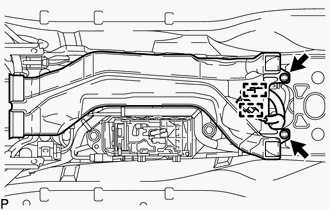

      GTY416710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 clips and pull out the No. 1 console box duct.
  6. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY

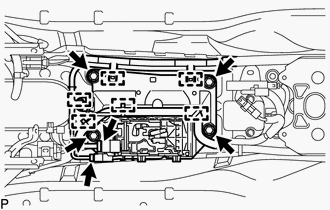

    GTY662412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the 2 connectors.
    2. Disconnect the 6 wire harness clamps from the transmission floor shift assembly.
    3. Remove the 4 bolts and transmission floor shift assembly.
