Removal [09/2015 - ]: Procedure

(Refer to PRECAUTION [09/2015 - ] )

(Refer to REMOVAL [09/2015 - ] )

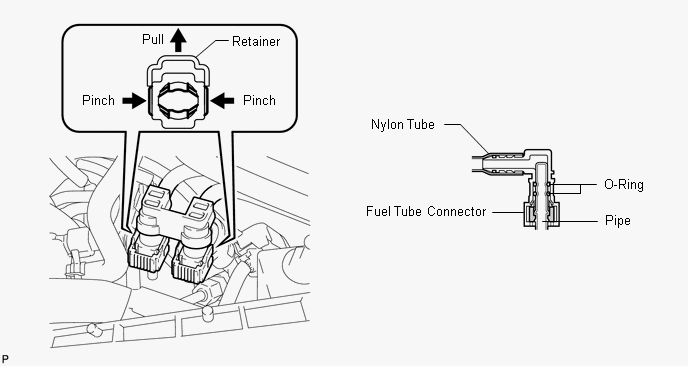

1. Lift up the retainer to release its lock.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Pinch the tube connector and then pull out the fuel hose.
   NOTE:

   • Check for any dirt and foreign matter contamination in the pipe and around the connector. Clean if necessary. Foreign matter may damage the O-rings or cause leaks in the seal between the pipe and connector.
   • Do not use any tools to separate the pipe and connector.
   • Do not forcefully bend or twist the nylon tube.
   • Check for any dirt and foreign matter on the pipe seal surface. Clean if necessary.
   • Put the pipe and connector ends in plastic bags to prevent damage and dirt contamination.
   • If the pipe and connector are stuck together, pinch the tube between your fingers and turn it carefully to free it. Then disconnect the hose.

1. Remove the 2 bolts and bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 2 clips and No. 3 engine cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the bolt and bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the connector from the delivery pipe.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

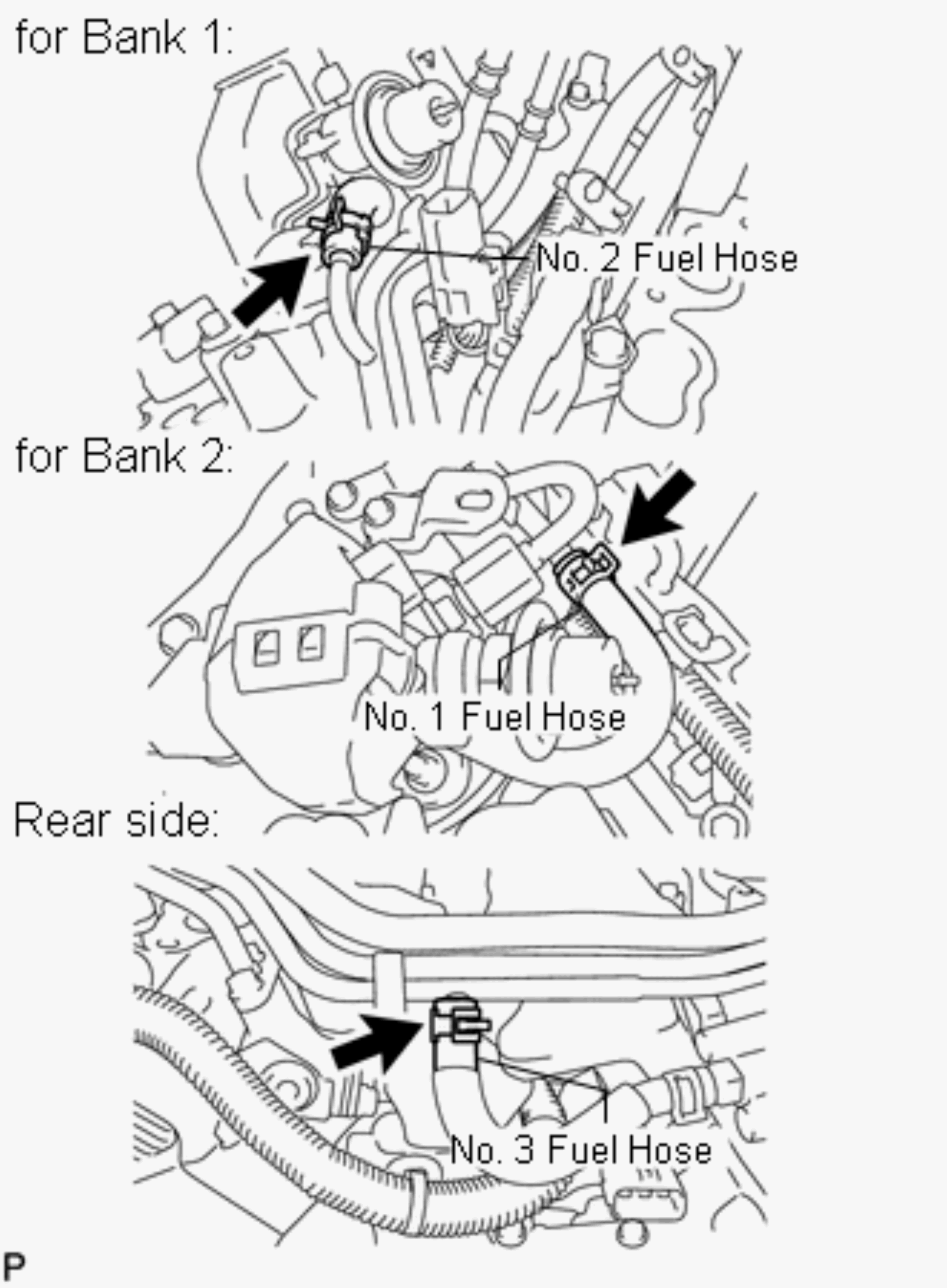

3. Disconnect the 3 fuel hoses.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Using SST, loosen the 2 fuel pressure pulsation dampers.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09612-24014
     • 09617-24011
5. Remove the 2 clamp bolts shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

6. Remove the 2 pulsation dampers, 4 gaskets and No. 1 fuel pipe.
