Removal [09/2015 - ]: Procedure

REMOVE FUEL PRESSURE PULSATION DAMPER ASSEMBLY
(Refer to REMOVAL [09/2015 - ] )

REMOVE NO. 3 FUEL PIPE SUB-ASSEMBLY

Remove the fuel pump connector.

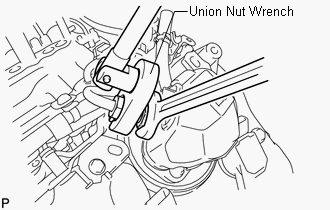

Fix the union bolt on the fuel pump side in place with a 21 mm wrench. Using a 19 mm union nut wrench, loosen the union nut and disconnect the fuel pipe from the fuel pump.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not loosen the union bolt on the fuel pump side. If the union bolt is accidentally loosened, replace the fuel pump.

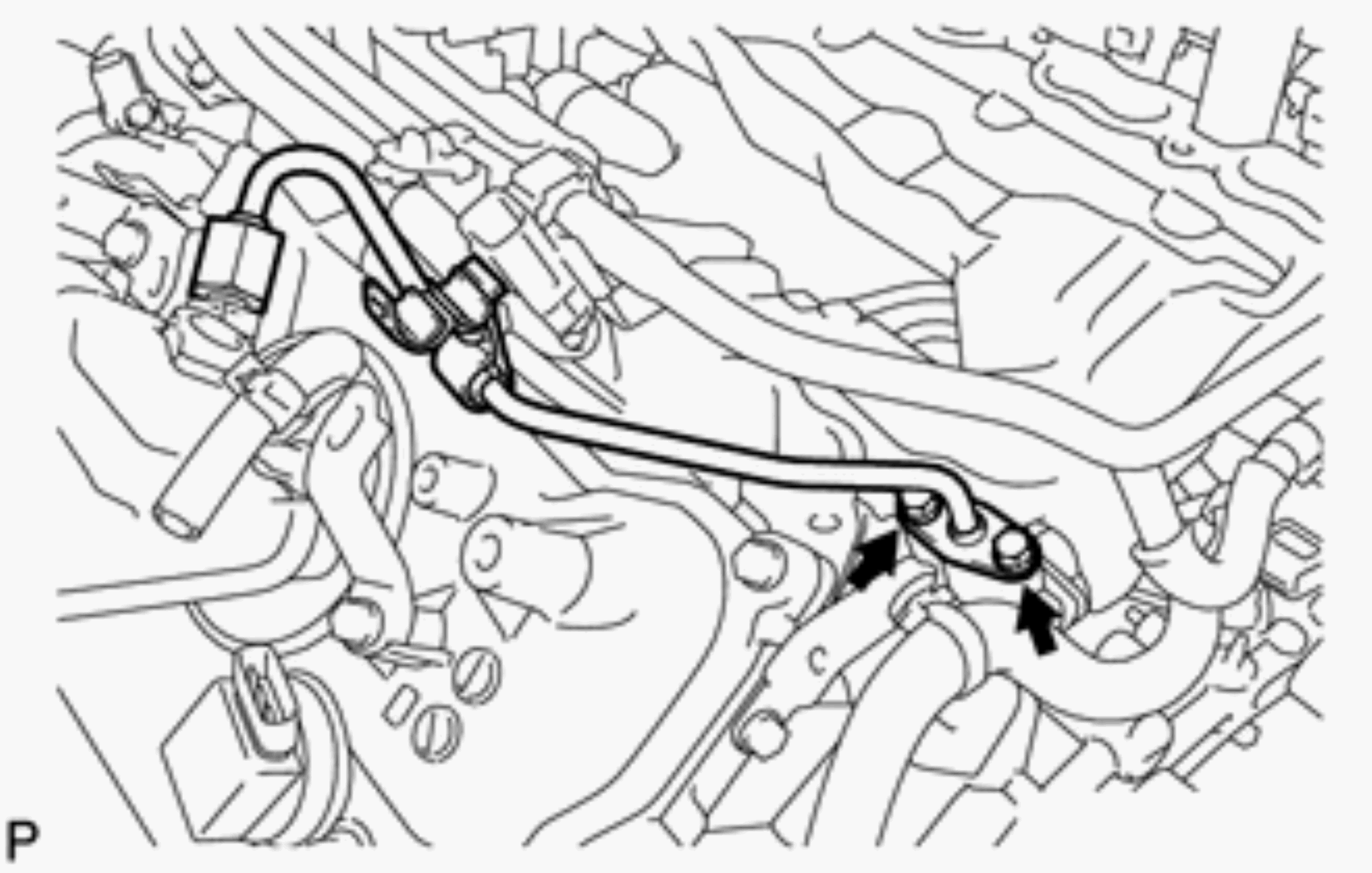

Remove the 2 bolts on the delivery pipe side and remove the fuel pipe.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the O-ring, backup ring and E-ring from the fuel pipe.

REMOVE NO. 2 FUEL PIPE SUB-ASSEMBLY
HINT:

The removal procedures are the same as the No. 3 fuel pipe.
REMOVE COVER SUB-ASSEMBLY (for Bank 1)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Detach the 5 claws and remove the engine cover LH and RH from the fuel pump.
REMOVE COVER SUB-ASSEMBLY (for Bank 2)
HINT:

The removal procedures are the same as the bank 1 side.

REMOVE FUEL PUMP ASSEMBLY (for Bank 1)

Remove the 2 nuts, fuel pump and fuel pump insulator.

Disconnect the fuel hose from the fuel pump.

REMOVE FUEL PUMP ASSEMBLY (for Bank 2)
HINT:

The removal procedures are the same as the bank 1 side.
