Removal [09/2015 - ]: Procedure

  1. REMOVE COWL TOP VENTILATOR LOUVER RH

    Refer to PROCEDURE - Step 1

  2. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [09/2015 - ] ).

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).

  4. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH

    (Refer to REMOVAL [09/2015 - ] )

  5. REMOVE NO. 3 EXHAUST MANIFOLD HEAT INSULATOR
    1. Remove the 3 bolts and No. 3 exhaust manifold heat insulator.
      GTY411738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE STARTER ASSEMBLY

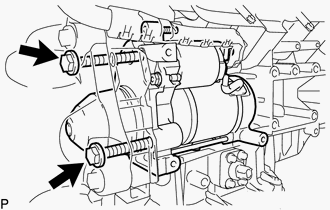

    1. Remove the 2 bolts and disconnect the starter assembly.
      GTY416526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Open the terminal cap.
      GTY640196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 nuts and disconnect the starter wire.
    4. Disconnect the starter connector and remove the starter assembly.
  7. REMOVE FLYWHEEL HOUSING SIDE COVER
    GTY105463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
