Installation [09/2015 - ]: Procedure

  1. INSTALL ENGINE OIL LEVEL SENSOR
    1. Install a new gasket to the engine oil level sensor.

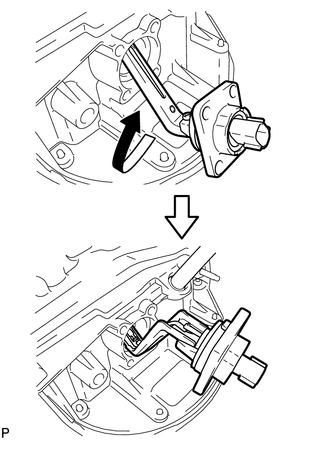

      GTY148461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Insert the engine oil level sensor into the oil pan and rotate it 180°.

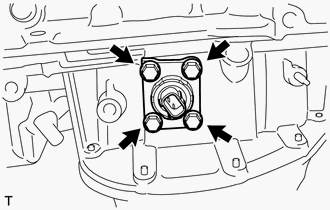

    3. Install the engine oil level sensor with the 4 bolts.
      GTY629222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

    4. Connect the engine oil level sensor connector.
  2. INSTALL CRANK POSITION SENSOR BRACKET
    1. Install the crank position sensor bracket with the bolt.

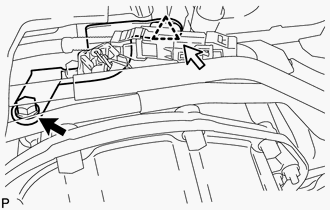

      GTY685991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    2. Connect the harness clamp.
  3. CONNECT OIL COOLER TUBE
    1. Connect the No. 1 oil cooler inlet tube and No. 1 oil cooler outlet tube by installing the 2 clamps with the 2 bolts.

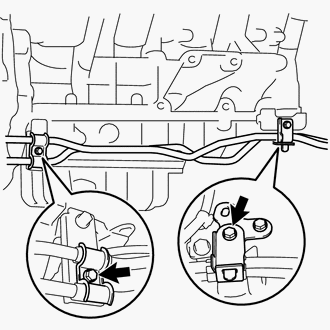

      GTY675664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  4. ADD ENGINE OIL

    See step  5

  5. INSPECT FOR ENGINE OIL LEAK

    See step  5

  6. CHECK ENGINE OIL LEVEL

    Refer to PROCEDURE - Step 2

  7. INSTALL FRONT SUSPENSION MEMBER PROTECTOR LOWER

    Refer to PROCEDURE - Step 100

  8. INSTALL NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 101

  9. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 13
