Installation [09/2015 - ]: Procedure

1. Apply grease to the flexible coupling centering bushings.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

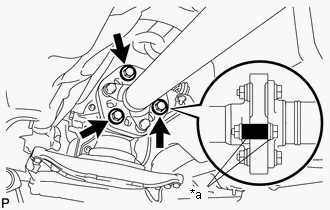

   Grease

   Molybdenum disulphide lithium base NLGI No. 2

2. Completely remove any oil or the like and clean the contact surfaces of the transmission companion flange and flexible coupling.
3. Completely remove any oil or the like and clean the contact surfaces of the differential companion flange and flexible coupling.
4. Align the matchmarks on the transmission companion flange and flexible coupling.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a

   Matchmark

5. Install and tighten the 3 bolts, 3 washers and 3 nuts.

   Torque: 79 N*m (806 kgf*cm, 58 ft.*lbf)

   HINT:

   The bolts should be installed from the propeller shaft side.

   NOTE:

   Be careful not to damage the flexible coupling centering bush.

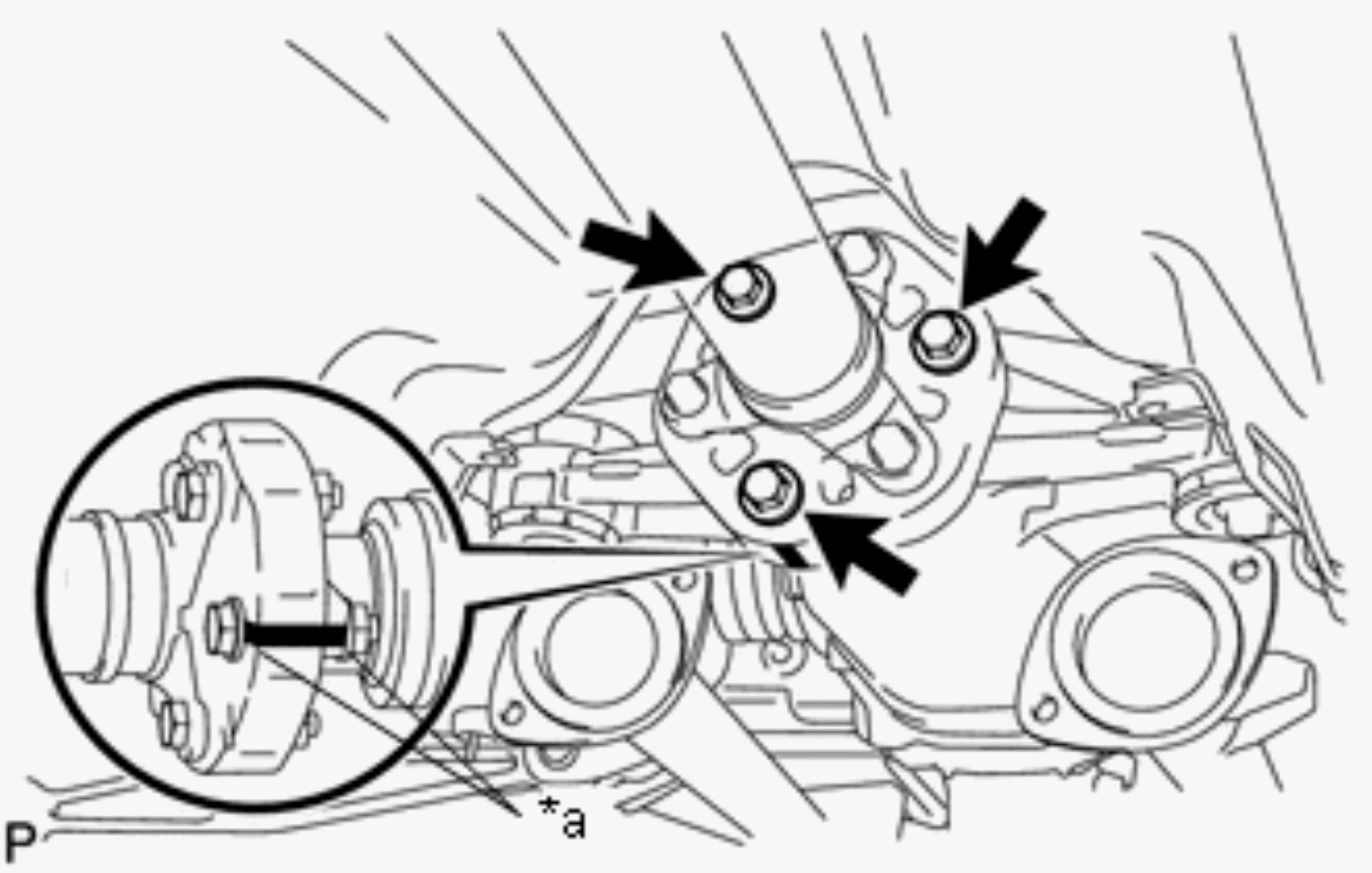

6. Align the matchmarks on the differential companion flange and flexible coupling.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a

   Matchmark

7. Install the 3 bolts, 3 washers and 3 nuts.

   Torque: 79 N*m (806 kgf*cm, 58 ft.*lbf)

   HINT:

   The bolts should be installed from the propeller shaft side.

   NOTE:

   Be careful not to damage the flexible coupling centering bush.

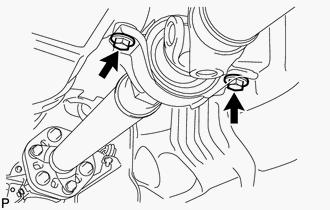

8. Temporarily install the 2 bolts with the adjusting washers.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use the adjusting washers which were removed.

1. Adjust the distance (A) between the surface of the center support bearing and the surface of the cushion to 11.5 to 13.5 mm (0.453 to 0.531 in.) as shown in illustration.

   Distance (A)

   11.5 to 13.5 mm (0.453 to 0.531 in.)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Check that the center line of the bracket is at a right angle to the shaft axial direction.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Tighten the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 49 N*m (501 kgf*cm, 36 ft.*lbf)

4. Using SST, tighten the adjusting nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Turn
   *b	Hold

   • SST: 09922-10010

   Torque: 69 N*m (704 kgf*cm, 51 ft.*lbf)

   HINT:

   Use a torque wrench with a fulcrum length of 34.5 cm (13.6 in.).

1. Stabilize the propeller shaft and differential.
   1. Turn the propeller shaft several times by hand to stabilize the center support bearing.
2. Check the No. 2 and No. 3 joint angles.
   1. Using SST, measure the installation angle of the intermediate shaft and propeller shaft.
      • SST: 09370-50010

      HINT:

      SST should be set directly underneath the shaft.

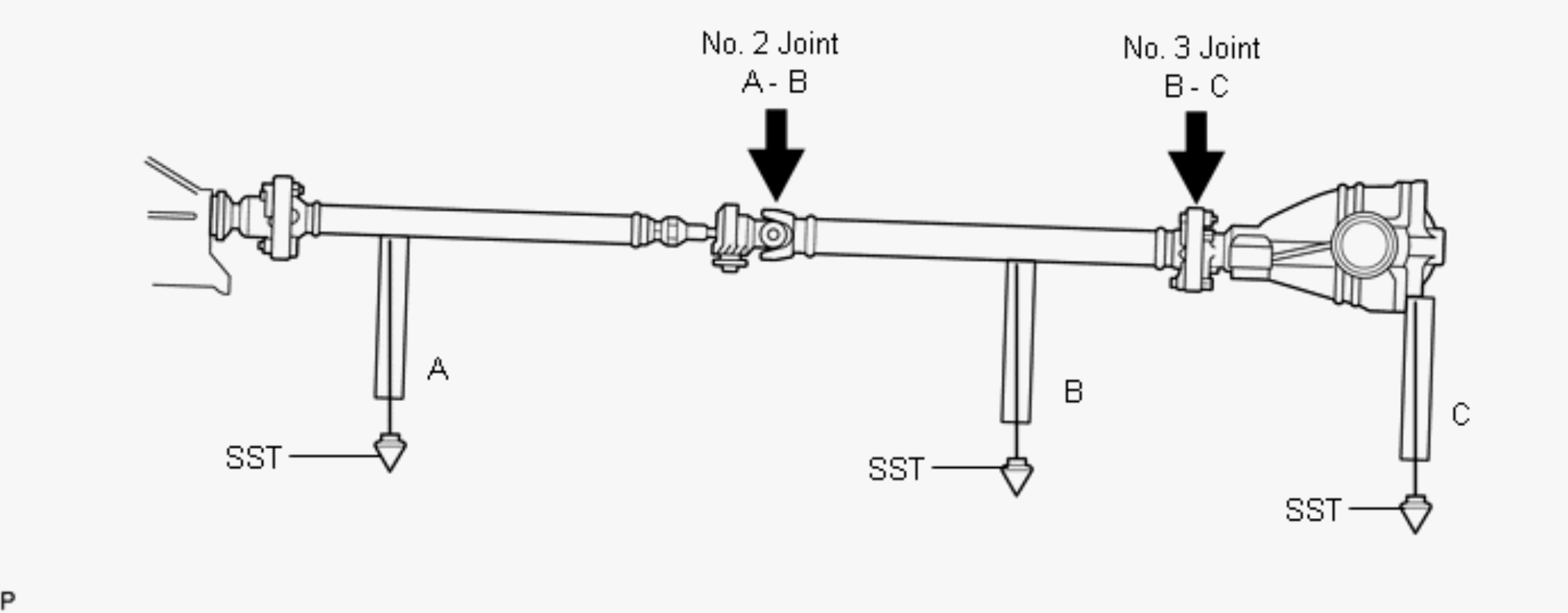

   2. Using SST, measure the installation angle of the differential.
      • SST: 09370-50010

      HINT:

      Measure the installation angle by placing SST in the positions shown in the illustration.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   3. Calculate the No. 2 joint angle.

      No. 2 joint angle

      A - B = 0°28' to 1°22'

      A

      Intermediate shaft installation angle

      B

      Propeller shaft installation angle

   4. Calculate the No. 3 joint angle.

      No. 3 joint angle

      B - C = 1°29' to 2°23'

      B

      Propeller shaft installation angle

      C

      Differential installation angle

      If the measured angle is not within the specified range, adjust it with the center support bearing washers.

3. Adjust the No. 2 joint angle.
   1. Select an appropriate center support bearing washer thickness from the table below, and obtain a washer set.

      Standard adjustment washer

      Thickness
      2.0 mm (0.0787 in.)
      4.5 mm (0.1772 in.)
      6.5 mm (0.2559 in.)
      9.0 mm (0.3543 in.)
      11.0 mm (0.4331 in.)

      NOTE:

      • Each set contains 2 washers.

      • Using the washer set, perform the adjustment.

1. Stabilize the propeller shaft and differential.
   1. Turn the propeller shaft several times by hand to stabilize the center support bearing.
2. Check the No. 2 and No. 3 joint angles.
   1. Using SST, measure the installation angle of the intermediate shaft and propeller shaft.
      • SST: 09370-50010

      HINT:

      SST should be set directly underneath the shaft.

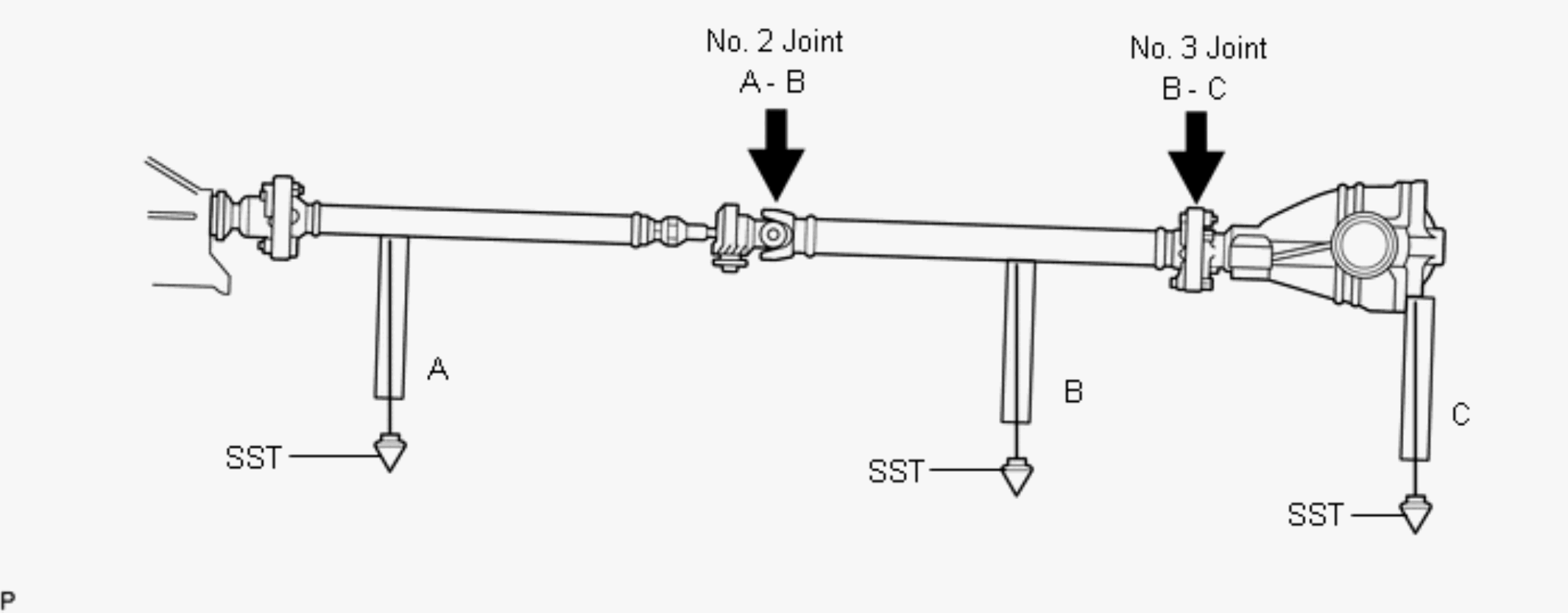

   2. Using SST, measure the installation angle of the differential.
      • SST: 09370-50010

      HINT:

      Measure the installation angle by placing SST in the positions shown in the illustration.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   3. Calculate the No. 2 joint angle.

      No. 2 joint angle

      A - B = 0°26' to 1°20'

      A

      Intermediate shaft installation angle

      B

      Propeller shaft installation angle

   4. Calculate the No. 3 joint angle.

      No. 3 joint angle

      B - C = 1°40' to 2°34'

      B

      Propeller shaft installation angle

      C

      Differential installation angle

      If the measured angle is not within the specified range, adjust it with the center support bearing washers.

3. Adjust the No. 2 joint angle.
   1. Select an appropriate center support bearing washer thickness from the table below, and obtain a washer set.

      Standard adjustment washer

      Thickness
      2.0 mm (0.0787 in.)
      4.5 mm (0.1772 in.)
      6.5 mm (0.2559 in.)
      9.0 mm (0.3543 in.)
      11.0 mm (0.4331 in.)

      NOTE:

      • Each set contains 2 washers.

      • Using the washer set, perform the adjustment.

1. Install the propeller shaft heat insulator with the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

1. for 2WD:

   Install the heat insulator with the 4 nuts.

   Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

2. for AWD:

   Install the heat insulator with the 6 nuts.

   Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

(Refer to INSTALLATION [09/2015 - ] )
