Removal [09/2015 - ]: Procedure

  1. DRAIN DIFFERENTIAL OIL

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 2 DIFFERENTIAL SUPPORT PROTECTOR
    1. Remove the 3 nuts and differential support protector.
      GTY409748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 DIFFERENTIAL SUPPORT PROTECTOR

    HINT:

    Use the same procedure described for the No. 2 differential support protector.

  4. REMOVE REAR SUSPENSION MEMBER BRACE LH

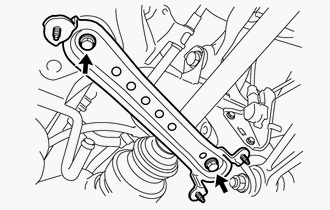

    1. Remove the 2 bolts and rear suspension member brace.
      GTY418975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SUSPENSION MEMBER BRACE RH

    HINT:

    Use the same procedure described for the LH side.

  6. REMOVE REAR AXLE ASSEMBLY LH

    (Refer to REMOVAL [09/2015 - ] )

  7. REMOVE REAR AXLE ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  8. REMOVE REAR DRIVE SHAFT ASSEMBLY LH

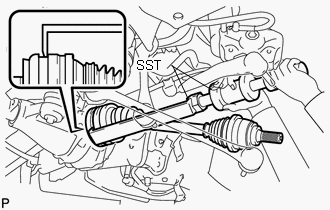

    1. Using SST, remove the rear drive shaft.
      • SST: 09520-01010
      • SST: 09520-24010
        • 09520-32040
      GTY640116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the drive shaft boot, dust cover and oil seal.
      • Be careful not to drop the rear drive shaft assembly.
    2. Using a screwdriver, remove the snap ring.
      GTY363502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR DRIVE SHAFT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.
