Disassembly [09/2015 - ]: Procedure

  1. REMOVE NO. 1 COMBINATION METER BRACKET
    1. Remove the 4 screws and No. 1 combination meter bracket.
      GTY402734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE COMBINATION METER GLASS
    1. Remove the 2 screws.
      GTY406024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 6 claws and remove the combination meter glass.
  3. REMOVE COMBINATION METER COVER
    1. Remove the 10 screws and combination meter cover.
      GTY417491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE METER DISPLAY PANEL

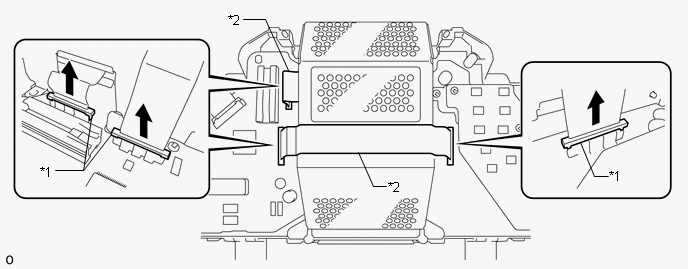

    1. Lift the 3 connector locks upward to release the locks and disconnect the 2 wire harnesses from the 3 connectors.
      GTY406320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Connector Lock *2 Wire Harness
      Upward - -
      NOTE:
      • Do not remove the connector lock from the meter ECU.
      • Do not forcibly pull the wire harness from the connector.
      • Disconnect the wire harness from the connector by holding both ends and pulling straight up.
      • Do not scratch or dirty the contacts of the wire harness.
    2. Remove the meter display panel from the meter ECU.
