Installation [09/2015 - ]: Procedure

  1. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
    1. Attach the 5 hooks (A).

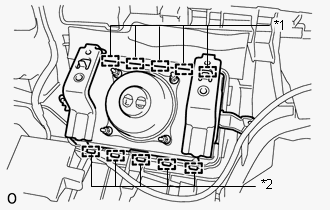

      GTY682720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Hook (A)
      *2 Hook (B)
    2. Push the front passenger airbag assembly to attach the 5 hooks (B).
    3. Install the 2 screws.
  2. INSTALL NO. 2 INSTRUMENT PANEL WIRE
    1. Connect the 2 airbag connectors.

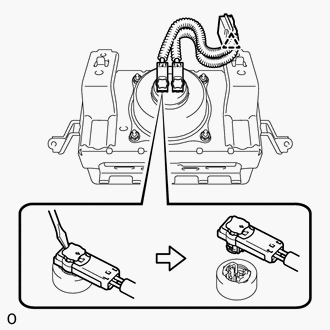

      GTY654441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • When connecting airbag connector, take care not to damage the airbag wire harness.
      • Be sure to only connect the connectors to each corresponding color.
    2. Push in the lock to connect the airbag connector.
    3. Attach the clamp to install the No. 2 instrument panel wire to the front passenger airbag assembly.
  3. INSTALL NO. 3 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 13

  4. INSTALL DEFROSTER NOZZLE ASSEMBLY

    Refer to PROCEDURE - Step 12

  5. INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT

    Refer to PROCEDURE - Step 15

  6. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    (Refer to INSTALLATION [09/2015 - ] )

  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).

  8. CHECK SRS WARNING LIGHT

    (Refer to DIAGNOSIS SYSTEM [09/2015 - ] )

  9. INSTALL COWL TOP VENTILATOR LOUVER RH

    Refer to PROCEDURE - Step 17
