Components [09/2015 - ]: Illustration

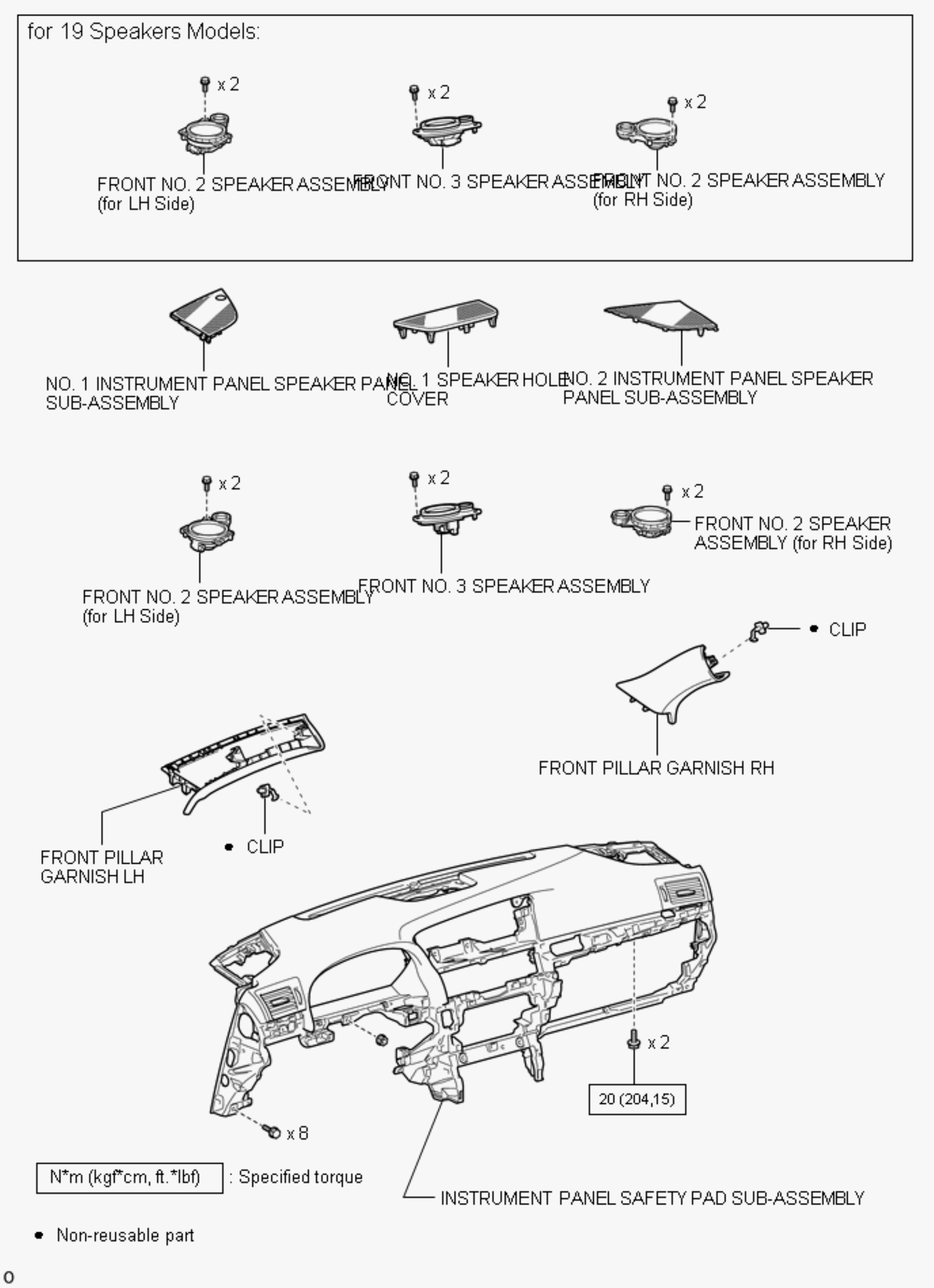

Fig 1: Instrument Panel Safety Pad Replacement Components With Torque Specifications (1 Of 5)
GTY398374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

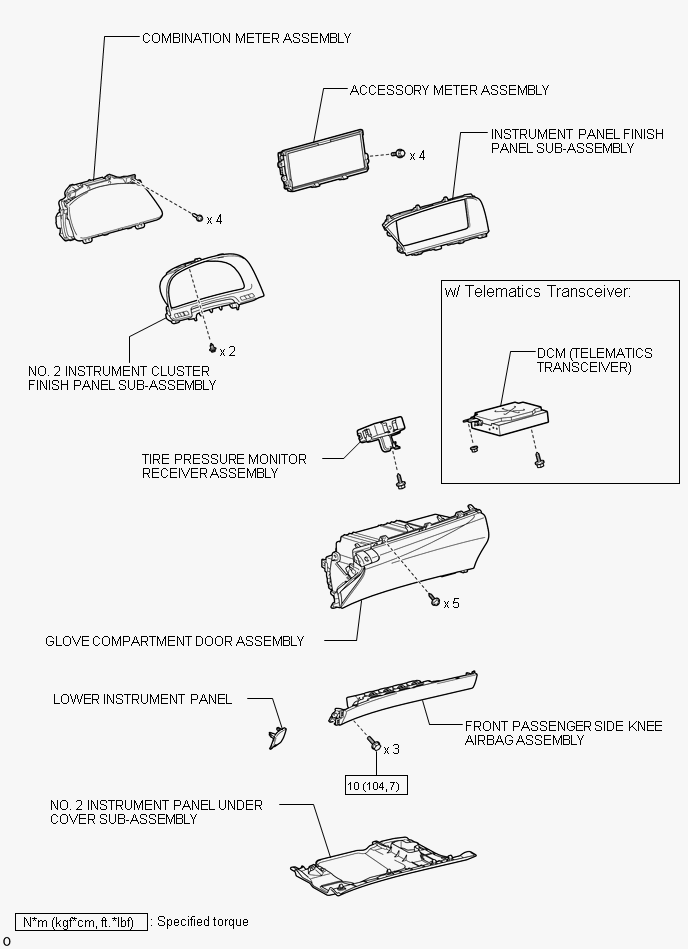

Fig 1: Instrument Panel Safety Pad Replacement Components With Torque Specifications (2 Of 5)
GTY621918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Instrument Panel Safety Pad Replacement Components With Torque Specifications (3 Of 5)
GTY647312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Instrument Panel Safety Pad Replacement Components With Torque Specifications (4 Of 5)
GTY409374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Instrument Panel Safety Pad Replacement Components With Torque Specifications (5 Of 5)
GTY401626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
