Meter Illumination is Always Dark [09/2015 - ]: Wiring Diagram

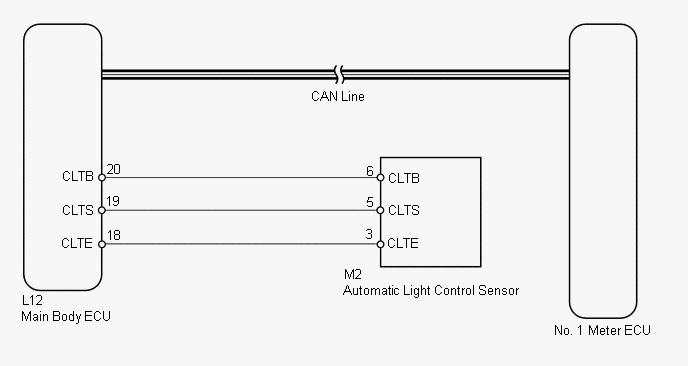

Fig 1: Main Body ECU CAN Communication Circuit Diagram

GTY684457

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
