Speed Signal Circuit [10/2017 - 09/2020]: Wiring Diagram

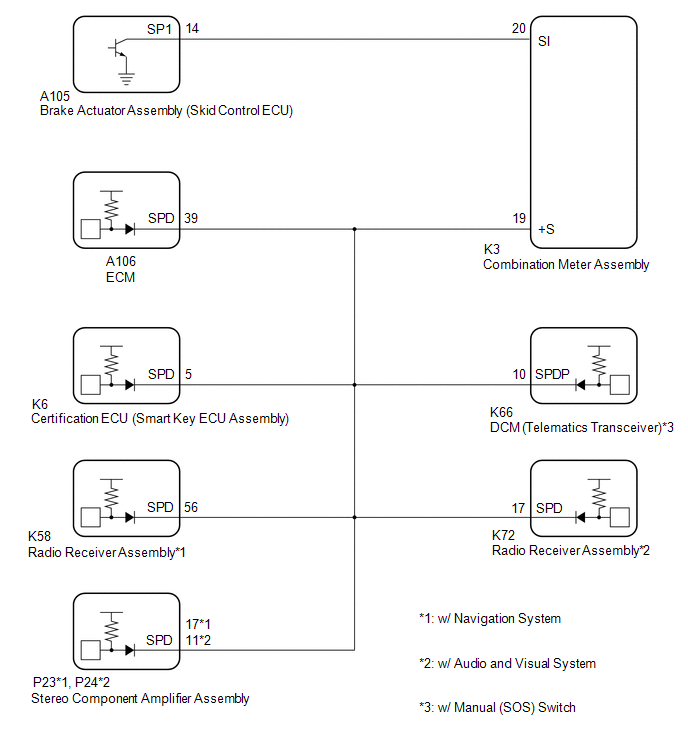

  1. for 2GR-FKS
    GTY779095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

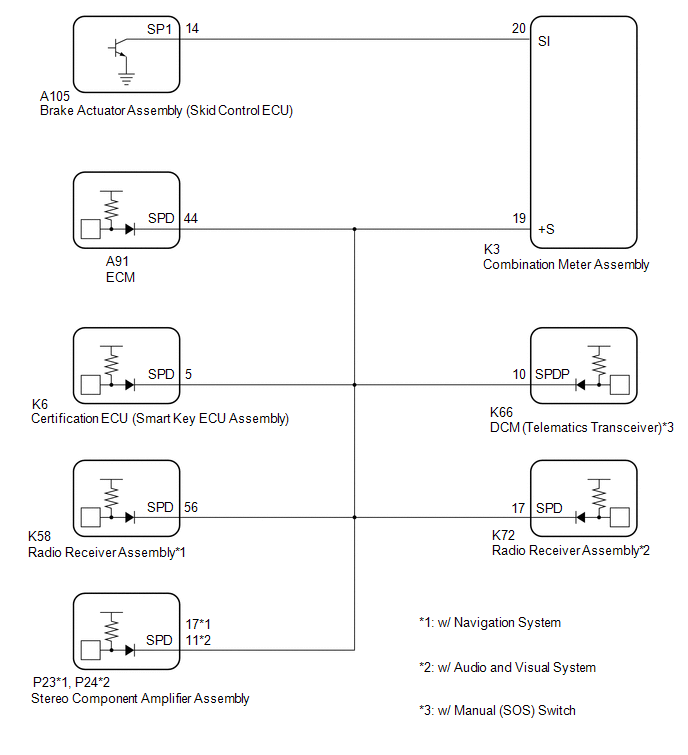

  2. for 8AR-FTS
    GTY779081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
