Speed Signal Circuit [10/2016 - 10/2017]: Wiring Diagram

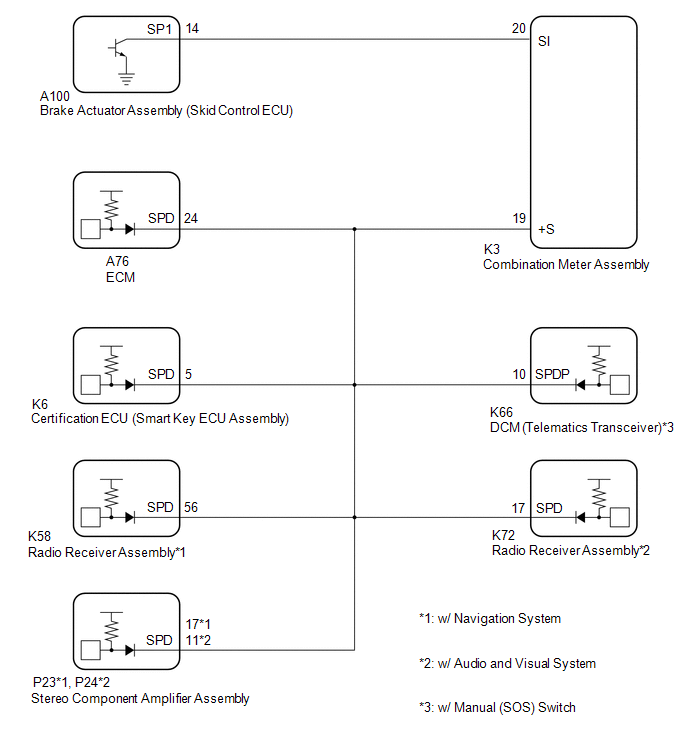

  1. for 2GR-FSE
    GTY616402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

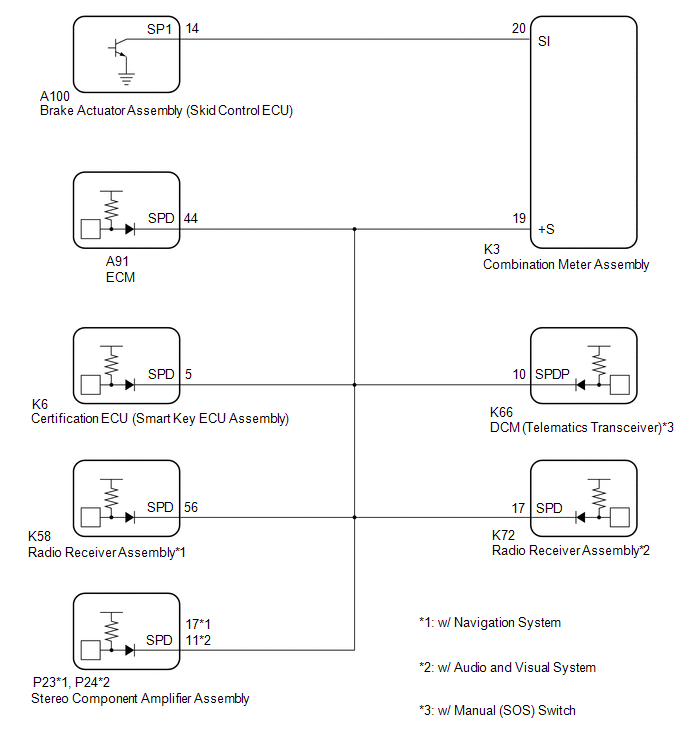

  2. for 8AR-FTS
    GTY616403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
