Speed Signal Circuit [08/2015 - 10/2016]: Wiring Diagram

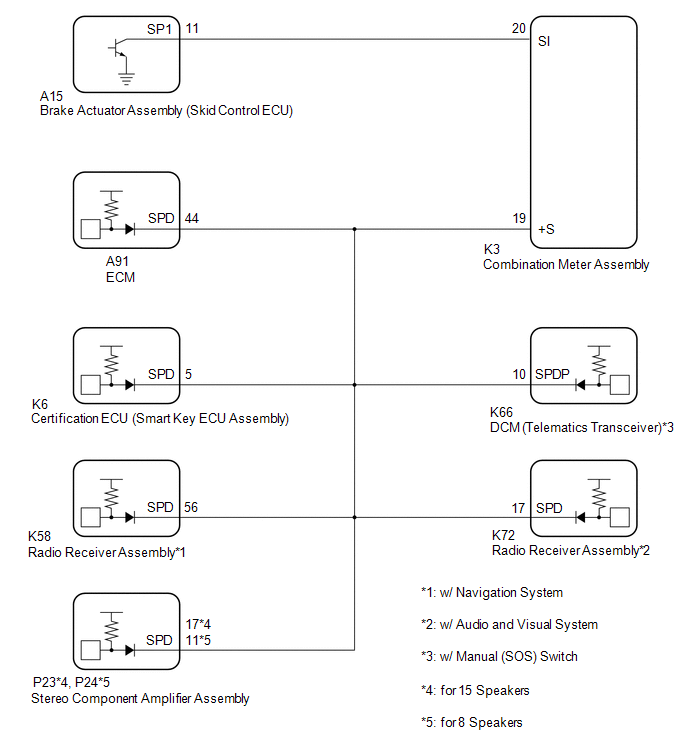

for 2GR-FSE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

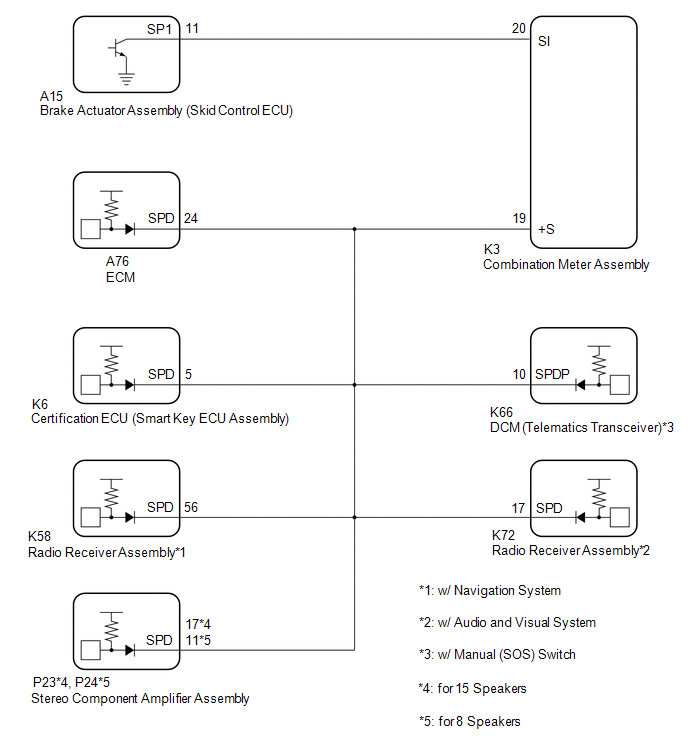

for 8AR-FTS

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
