DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [10/2016 - 09/2020]: Wiring Diagram

  1. w/ Seat Position Memory

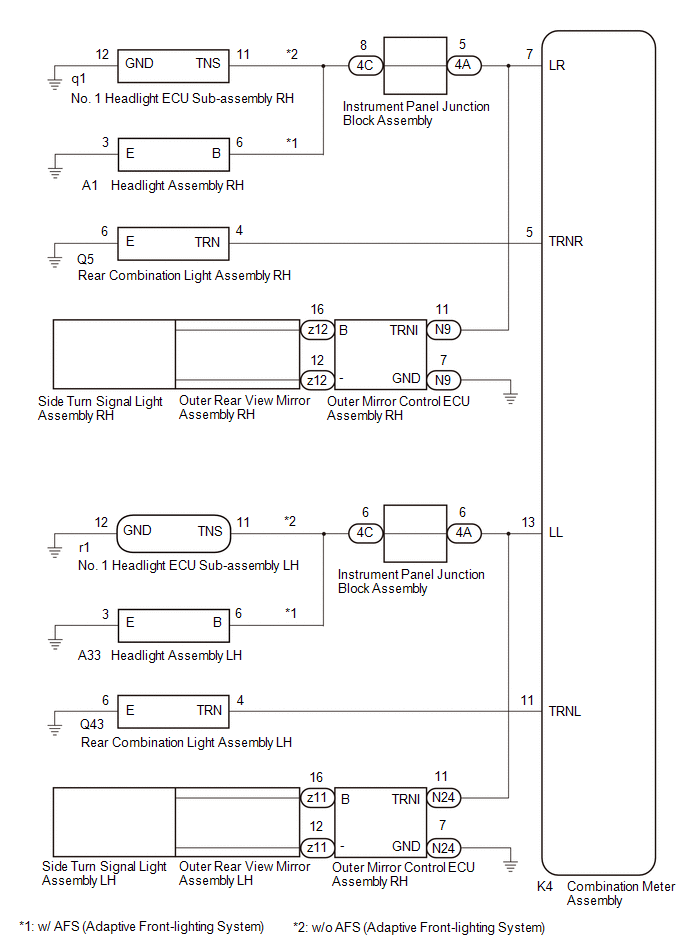

    Fig 1: w/ Seat Position Memory [10/2016 - 09/2020]
    GTY652294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/o Seat Position Memory

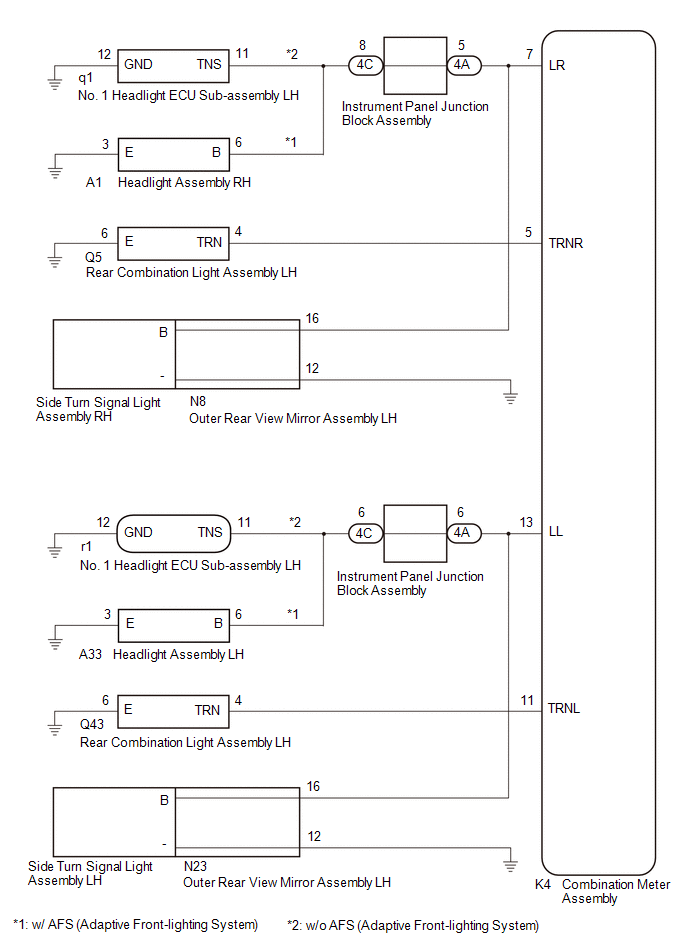

    Fig 2: w/o Seat Position Memory [10/2016 - 09/2020]
    GTY645694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
