DTC B1507: Open in Turn Signal Circuit [10/2016 - 09/2020]: Wiring Diagram

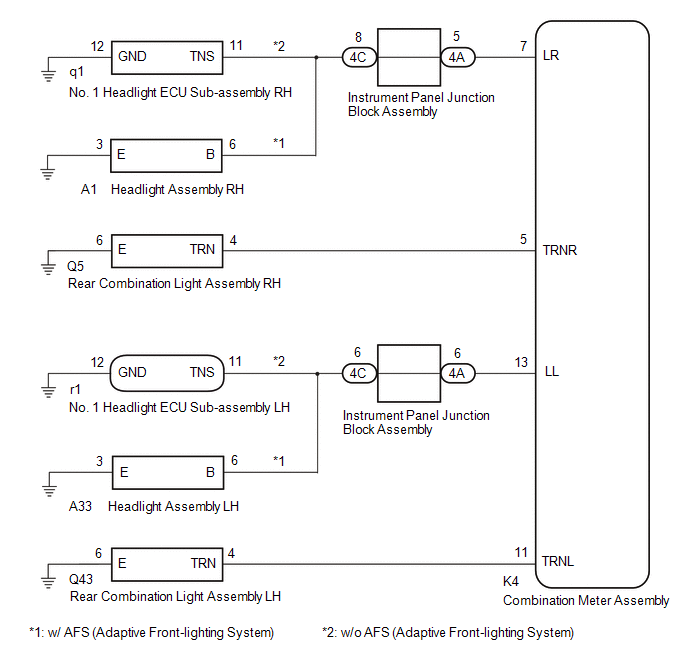

Fig 1: DTC B1507: Open in Turn Signal Circuit [10/2016 - 09/2020]

GTY628851

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
