Components [04/2013 - ]

Fig 1: Valve Body Assembly Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	TRANSMISSION VALVE BODY ASSEMBLY	*2	SPRING
*3	CHECK BALL BODY	*4	DETENT SPRING
*5	DETENT SPRING COVER	-	-
	N.m (kgf/cm, ft.lbf) : Specified torque	-	-

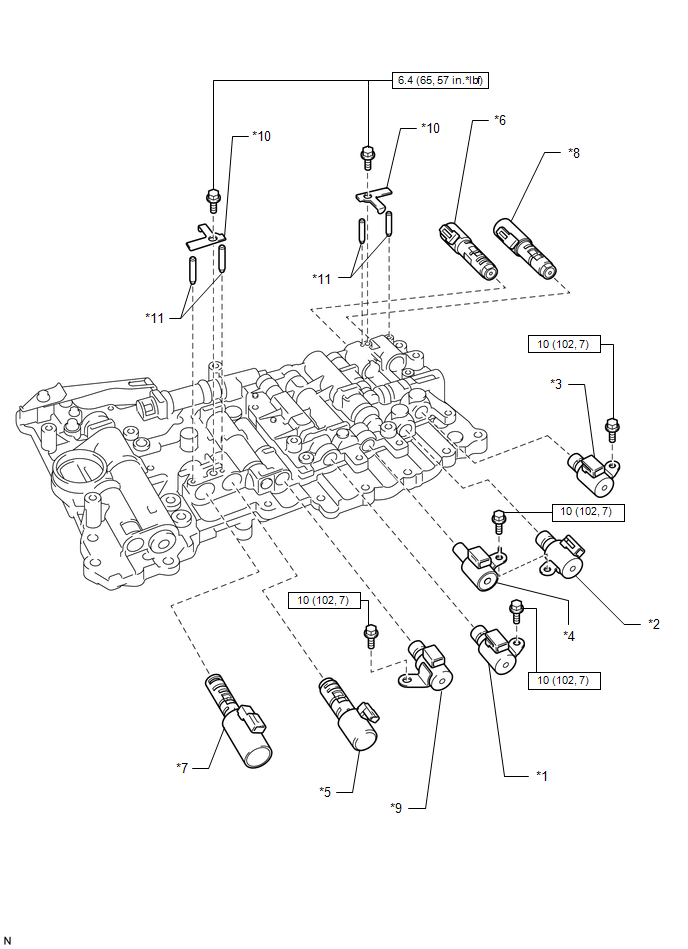

Fig 2: Valve Body Assembly Replacement Components With Torque Specifications (2 Of 2)

*1	SHIFT SOLENOID VALVE S1	*2	SHIFT SOLENOID VALVE S2
*3	SHIFT SOLENOID VALVE S3	*4	SHIFT SOLENOID VALVE S4
*5	SHIFT SOLENOID VALVE SL1	*6	SHIFT SOLENOID VALVE SL2
*7	LINE PRESSURE CONTROL SOLENOID ASSEMBLY	*8	LOCK UP CONTROL SOLENOID ASSEMBLY
*9	SHIFT SOLENOID VALVE SR	*10	LOCK PLATE
*11	STRAIGHT PIN	-	-
	N.m (kgf/cm, ft.lbf) : Specified torque	-	-
