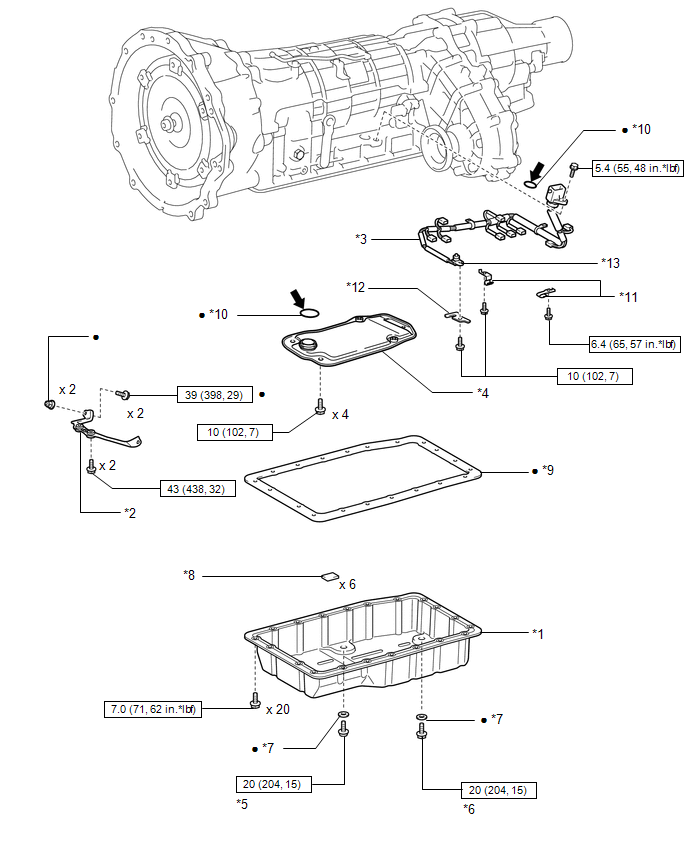

Components [04/2013 - ]
| *1 | AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY | *2 | NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY |
| *3 | TRANSMISSION WIRE | *4 | VALVE BODY OIL STRAINER ASSEMBLY |
| *5 | OVERFLOW PLUG | *6 | DRAIN PLUG |
| *7 | GASKET | *8 | TRANSMISSION OIL CLEANER MAGNET |
| *9 | AUTOMATIC TRANSMISSION OILPAN GASKET | *10 | O-RING |
| *11 | VALVE BODY WIRE HARNESS CLAMP | *12 | TEMPERATURE SENSOR CLAMP |
| *13 | ATF TEMPERATURE SENSOR | - | - |
| N.m (kgf/cm, ft.lbf) : Specified torque | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |
