Components [04/2013 - ]

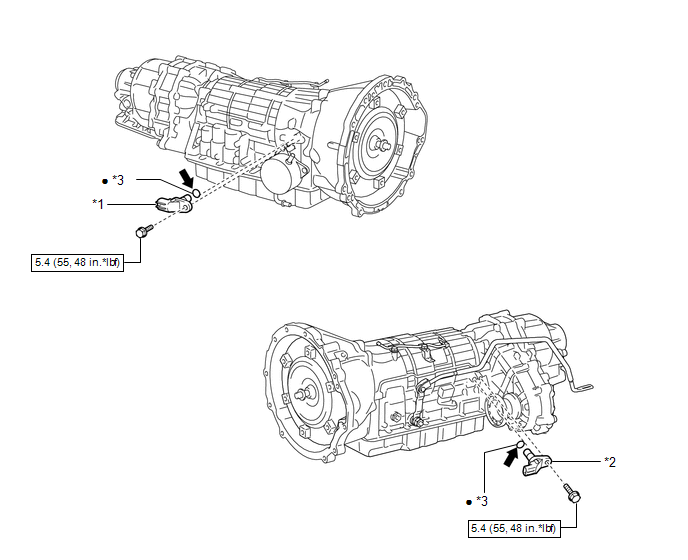

Fig 1: Speed Sensor Replacement Components With Torque Specifications
GTY463821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TRANSMISSION REVOLUTION SENSOR NT *2 TRANSMISSION REVOLUTION SENSOR SP2
*3 O-RING - -
N.m (kgf/cm, ft.lbf) : Specified torque • Non-reusable part
Toyota Genuine ATF WS - -
