Components [09/2020 - ]

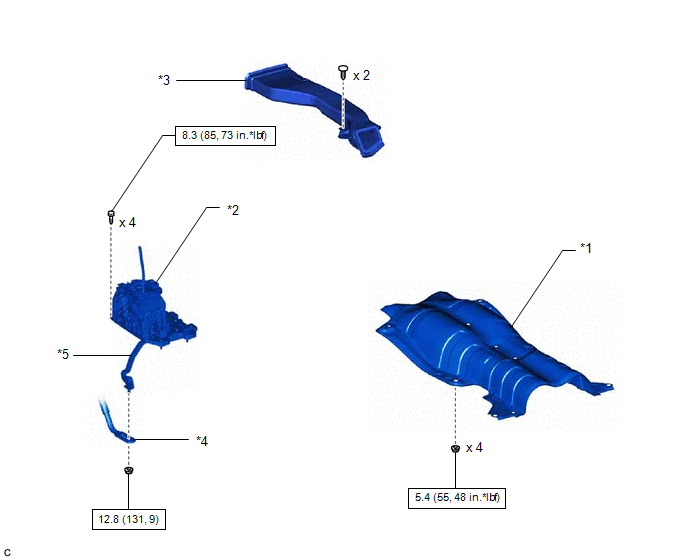

Fig 1: Shift Lever Replacement Components With Torque Specifications [09/2020 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT NO. 1 FLOOR HEAT INSULATOR	*2	TRANSMISSION FLOOR SHIFT ASSEMBLY
*3	NO. 1 CONSOLE BOX DUCT	*4	FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
*5	LEVER	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 2: Shift Lever Replacement Components With Torque Specifications [09/2020 - ] (2 Of 2)

*1	SHIFT LEVER PLATE SUB-ASSEMBLY	*2	REMOTE OPERATION CONTROLLER ASSEMBLY
*3	SHIFT POSITION INDICATOR	-	-
