Components [04/2013 - 09/2020]

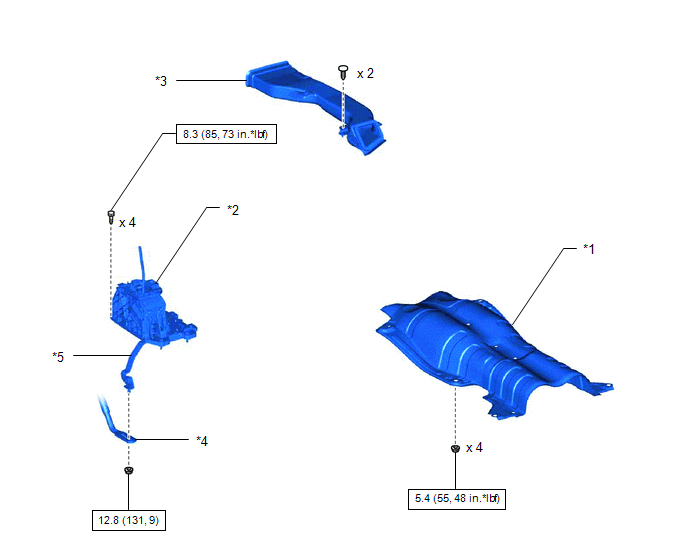

Fig 1: Shift Lever Replacement Components With Torque Specifications [04/2013 - 09/2020] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT NO. 1 FLOOR HEAT INSULATOR	*2	TRANSMISSION FLOOR SHIFT ASSEMBLY
*3	NO. 1 CONSOLE BOX DUCT	*4	FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
*5	LEVER	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 2: Shift Lever Replacement Components With Torque Specifications [04/2013 - 09/2020] (2 Of 2)

*1	SHIFT LEVER PLATE SUB-ASSEMBLY	*2	SHIFT POSITION INDICATOR
*3	CONSOLE PANEL SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
