Removal [04/2013 - 08/2015]: Procedure

  1. REMOVE REAR SEAT ASSEMBLY (for Fixed Seat Type)

    Refer to REMOVAL [04/2013 - 08/2015]

  2. REMOVE REAR SEAT ASSEMBLY (for Fold Down Seat Type)

    Refer to REMOVAL [04/2013 - 10/2016]

  3. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 11

  4. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  5. REMOVE REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 20

  6. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  7. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 21

  8. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  9. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (for Fold Down Seat Type)

    Refer to PROCEDURE - Step 4

  10. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (for Fold Down Seat Type)

    Refer to PROCEDURE - Step 10

  11. REMOVE REAR SEAT SUB FLOOR PANEL (for Fold Down Seat Type)
    1. Disengage the 3 clips to remove the rear seat sub floor panel.
      GTY465275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 2 ROOM PARTITION COVER (for Fold Down Seat Type)
    1. Remove the clip.
      GTY457055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and clip.
    3. Disengage the guide to remove the No. 2 room partition cover.
  13. REMOVE NO. 1 ROOM PARTITION COVER (for Fold Down Seat Type)

    HINT:

    Use the same procedure as for the No. 2 room partition cover.

  14. REMOVE NO. 3 ROOM PARTITION COVER (for Fold Down Seat Type)
    1. Disengage the 5 clips and remove the No. 3 room partition cover.

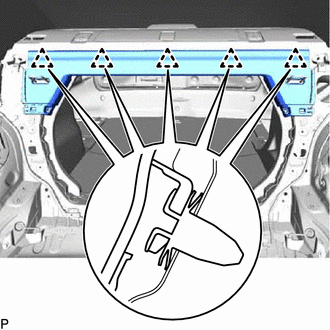

      GTY467220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. DISCONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY LH
    1. Remove the bolt and disconnect the floor anchor of the rear seat 3 point type outer belt assembly LH.
      GTY457056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. DISCONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  17. DISCONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH (for Fixed Seat Type)

    See step  16

  18. REMOVE REAR SEAT SHOULDER BELT HOLE COVER

    HINT:

    Use the same procedure for all rear seat shoulder belt hole covers.

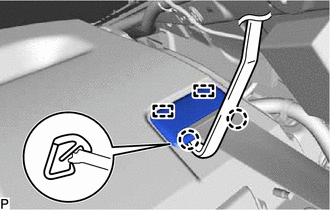

    1. Using a moulding remover, disengage the 2 claws and 2 guides, and remove the rear seat shoulder belt hole cover.
      GTY457053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE CENTER STOP LIGHT ASSEMBLY WITH COVER (w/o Rear Sunshade)

    Refer to PROCEDURE - Step 1

  20. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade)

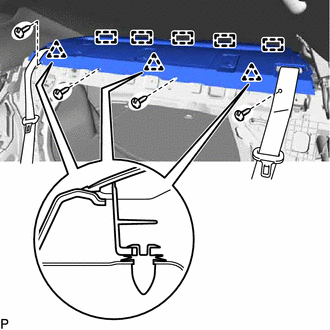

    GTY457052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a clip remover, remove the 4 clips.
    2. Disengage the 3 clips and 5 guides.
    3. for Fixed Seat Type:
      1. Pass the 3 rear seat belt floor anchors through the holes of the package tray trim panel assembly then remove the package tray trim panel assembly.
    4. for Fold Down Seat Type:
      1. Pass the 2 rear seat belt floor anchors through the holes of the package tray trim panel assembly then remove the package tray trim panel assembly.
  21. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)
    1. Using a clip remover, remove the 4 clips.

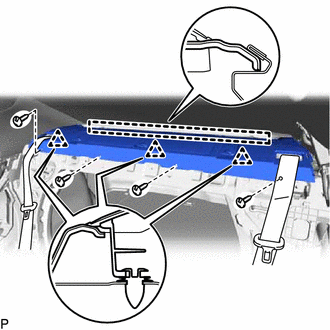

      GTY468734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 clips and guide.
    3. Pass the 2 rear seat belt floor anchors through the holes of the package tray trim panel assembly then remove the package tray trim panel assembly.
  22. REMOVE REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY

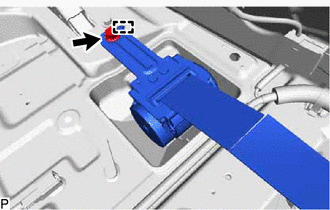

    GTY468735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. w/o Pretensioner:
      1. Remove the bolt.
      2. Disengage the guide to remove the rear seat 3 point type outer belt assembly.
    2. w/ Pretensioner:

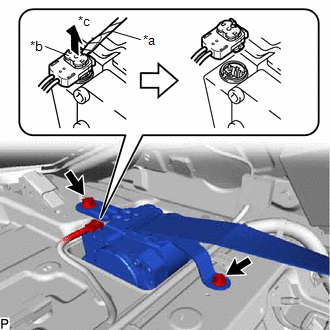

      GTY462559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Locking Button
      *c Release
      1. Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector as shown in the illustration.

        HINT:

        Tape the screwdriver tip before use.

      2. Remove the 2 bolts and rear seat 3 point type outer belt assembly.
