Components [04/2013 - 10/2016]

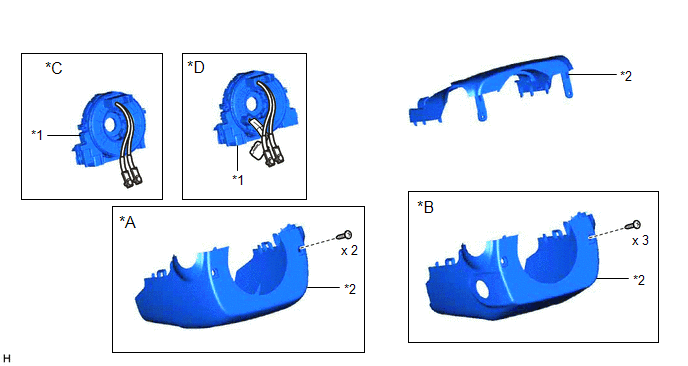

Fig 1: Spiral Cable Replacement Components [04/2013 - 10/2016] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Manual Tilt and Manual Telescopic Steering Column	*B	for Power Tilt and Power Telescopic Steering Column
*C	w/o Steering Heater	*D	w/ Steering Heater
*1	SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY	*2	STEERING COLUMN COVER

Fig 2: Spiral Cable Replacement Components [04/2013 - 10/2016] (2 Of 2)

SPIRAL CABLE SUB-ASSEMBLY

STEERING SENSOR
