Removal [04/2013 - ]: Procedure

  1. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to REMOVAL [04/2013 - ]

  2. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 3 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 3 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 3 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 3 [11/2021 - ]

  3. REMOVE FRONT NO. 2 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 7 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 7 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 7 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 7 [11/2021 - ]

  4. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

    Refer to PROCEDURE - Step 25 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 25 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 25 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 26 [09/2020 - ]

  5. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY
    1. Disengage the clamp.

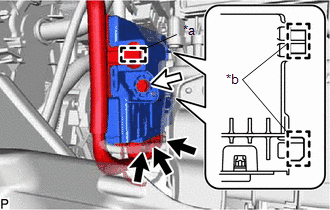

      GTY465572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
    2. Disconnect each connector.
    3. Remove the screw.
    4. Disengage the 2 guides to remove the air conditioning amplifier assembly.
