Disassembly [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REPAIR SERVICE STARTER KIT

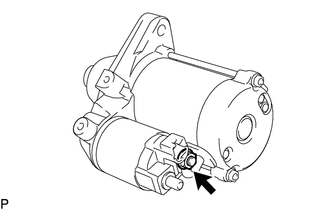

    1. Remove the nut and disconnect the lead wire from terminal C.
      GTY627231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws holding the repair service starter kit.
      GTY627229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the repair service starter kit.
    4. Remove the return spring and plunger.
  2. REMOVE STARTER YOKE ASSEMBLY
    1. Remove the 2 through bolts, and pull out the starter yoke assembly and commutator end frame together.
      GTY627234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE STARTER COMMUTATOR END FRAME ASSEMBLY
    1. Remove the starter commutator end frame assembly from the starter yoke assembly.
      GTY380890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE STARTER ARMATURE PLATE
    1. Remove the starter armature plate from the starter yoke assembly.
      GTY191536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE STARTER COMMUTATOR END FRAME COVER
    1. Using a screwdriver, remove the starter commutator end frame cover.
      GTY685812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE STARTER ARMATURE ASSEMBLY
    1. Hold the starter commutator end frame assembly in a vise between aluminum plates.
      NOTE:

      Do not overtighten the vise.

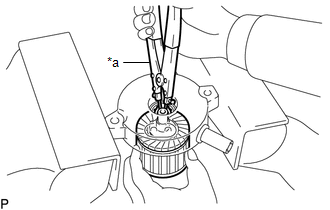

    2. Using snap ring pliers, remove the snap ring and plate washer.
      GTY837539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Snap Ring Pliers
    3. Remove the starter armature assembly from the commutator end frame assembly.
      NOTE:

      Do not drop the starter armature assembly.

  7. REMOVE PLANETARY GEAR

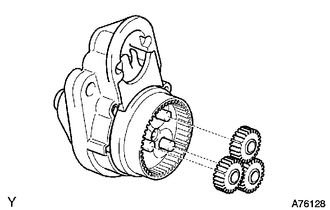

    1. Remove the 3 planetary gears.
      GTY653876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

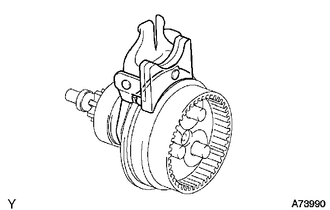

  8. REMOVE STARTER CENTER BEARING CLUTCH SUB-ASSEMBLY
    GTY177546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the starter center bearing clutch sub-assembly together with the drive lever set pin from the starter drive housing assembly.
    2. Remove the drive lever set pin from the starter center bearing clutch sub-assembly.
