Components [10/2017 - 09/2020]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

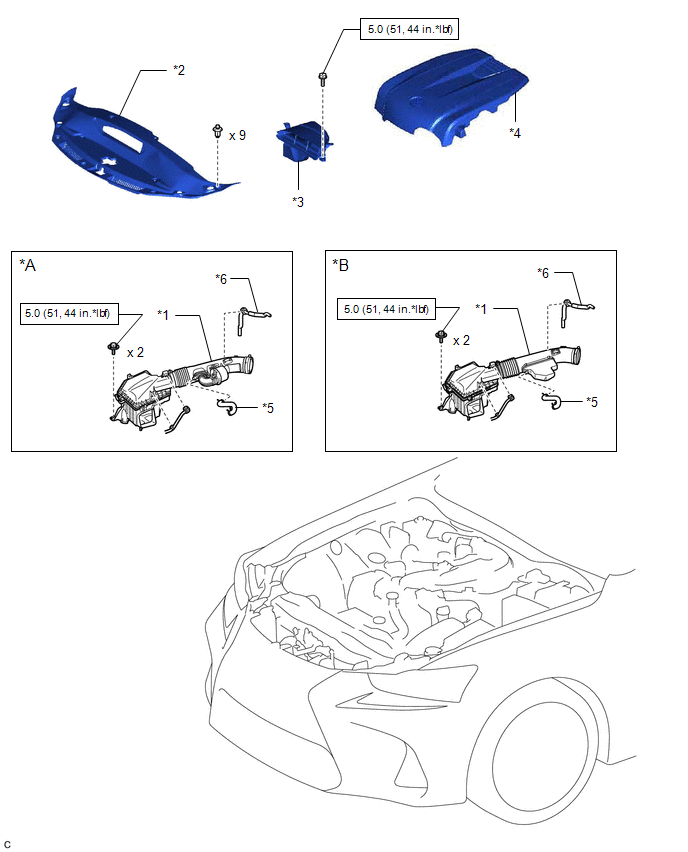

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
for 2WD |
*B |
for AWD |
| *1 |
ENGINE UNDER COVER |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
w/ Intake Air Sound Creator |
*B |
w/o Intake Air Sound Creator |
| *1 |
AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE |
*2 |
COOL AIR INTAKE DUCT SEAL |
| *3 |
INLET NO. 1 AIR CLEANER |
*4 |
V-BANK COVER SUB-ASSEMBLY |
| *5 |
NO. 2 VENTILATION HOSE |
*6 |
NO. 1 FUEL VAPOR FEED HOSE |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
ENGINE ROOM MAIN WIRE |
*2 |
HOOD LOCK ASSEMBLY |
| *3 |
HOOD LOCK CONTROL CABLE ASSEMBLY |
*4 |
HOOD LOCK RELEASE LEVER PROTECTOR |
| *5 |
UPPER RADIATOR SUPPORT SUB-ASSEMBLY |
*6 |
WIRE HARNESS |
|
N.m (kgf/cm, ft.lbf): Specified torque |
 |
MP grease |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
COOLER CONDENSER ASSEMBLY |
*2 |
ENGINE ROOM ECU OUTLET DUCT |
| *3 |
LOWER RADIATOR SUPPORT |
*4 |
NO. 1 RADIATOR HOSE |
| *5 |
NO. 2 RADIATOR HOSE SUB-ASSEMBLY |
*6 |
RADIATOR ASSEMBLY |
| *7 |
RADIATOR RESERVE TANK ASSEMBLY |
*8 |
RADIATOR SUPPORT CUSHION |
| *9 |
RADIATOR HOSE CLAMP |
*10 |
FAN SHROUD ASSEMBLY |
| • |
Non-reusable part |
- |
- |
