Removal [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 1 [09/2020 - ]

  2. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 3 [09/2020 - ]

  3. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 18 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 18 [09/2020 - ]

  4. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 22 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 22 [09/2020 - ]

  5. DRAIN ENGINE COOLANT

    See step  2

  6. REMOVE NO. 1 RADIATOR HOSE

    See step  10

  7. DISCONNECT ENGINE ROOM MAIN WIRE

    See step  11

  8. REMOVE RADIATOR RESERVE TANK ASSEMBLY

    See step  12

  9. DISCONNECT NO. 2 RADIATOR HOSE SUB-ASSEMBLY

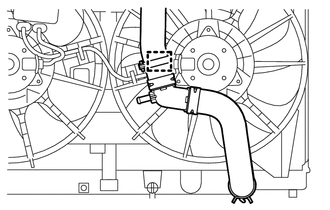

    1. Disengage the clamp to disconnect the No. 2 radiator hose sub-assembly from the radiator hose clamp.
      GTY825704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the radiator hose clamp from the fan shroud assembly.
  10. REMOVE ENGINE ROOM ECU OUTLET DUCT

    See step  16

  11. REMOVE FAN SHROUD ASSEMBLY
    1. Disengage the 3 claws.
      GTY463747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 guides to remove the fan shroud assembly from the radiator assembly.
      NOTE:

      Do not damage the radiator assembly when removing the fan shroud assembly.

  12. REMOVE COOLING FAN ECU

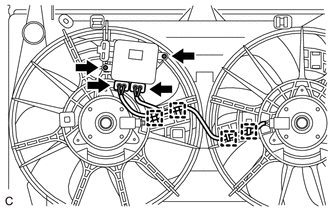

    1. Disconnect the cooling fan motor connector and No. 2 cooling fan motor connector.
      GTY466726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 clamps to disconnect the wire harness.
    3. Remove the 2 screws and cooling fan ECU.
  13. REMOVE FAN
    1. Remove the nut and fan.
      GTY466725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 2 FAN
    1. Remove the nut and No. 2 fan.
      GTY470835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE COOLING FAN MOTOR

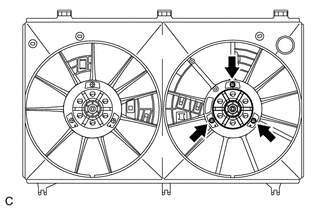

    1. Remove the 3 screws and cooling fan motor.
      GTY466706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 2 COOLING FAN MOTOR

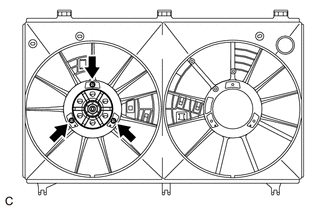

    1. Remove the 3 screws and No. 2 cooling fan motor.
      GTY466708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
