Disassembly [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REPAIR SERVICE STARTER KIT
    1. Remove the nut and disconnect the lead wire from the magnet switch.
      GTY431086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Holding the magnet switch to the starter drive housing assembly, remove the 2 screws.
      GTY463082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the magnet switch.
    4. Remove the return spring and plunger from the starter drive housing assembly.
  2. REMOVE STARTER COMMUTATOR END FRAME ASSEMBLY

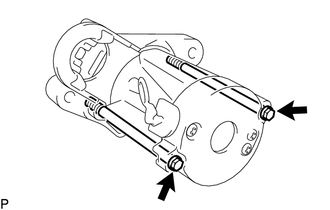

    1. Remove the 2 through bolts, and pull out the starter yoke assembly together with the starter commutator end frame assembly.
      GTY470040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE STARTER YOKE ASSEMBLY
    1. Remove the starter yoke assembly from the starter commutator end frame assembly.
      GTY441650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE STARTER ARMATURE PLATE
    1. Remove the starter armature plate from the starter yoke assembly.
      GTY381006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE STARTER COMMUTATOR END FRAME COVER
    1. Using a screwdriver, pry out the starter commutator end frame cover.
      GTY451981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE STARTER ARMATURE ASSEMBLY
    1. Hold the starter commutator end frame assembly in a vise between aluminum plates.
      NOTE:

      Do not overtighten the vise.

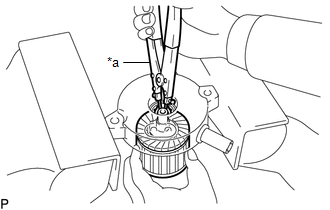

    2. Using snap ring pliers, remove the snap ring and washer.
      GTY458196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Snap Ring Pliers
      NOTE:

      Do not drop the starter armature assembly.

    3. Remove the starter armature assembly from the starter commutator end frame assembly.
  7. REMOVE PLANETARY GEAR
    1. Remove the 3 planetary gears from the starter drive housing assembly.
      GTY463085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE STARTER CENTER BEARING CLUTCH SUB-ASSEMBLY
    1. Remove the starter center bearing clutch sub-assembly together with the drive lever set pin from the starter drive housing assembly.
    2. Remove the drive lever set pin from the starter center bearing clutch sub-assembly.
      GTY443131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
