Components [04/2013 - 08/2015]

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

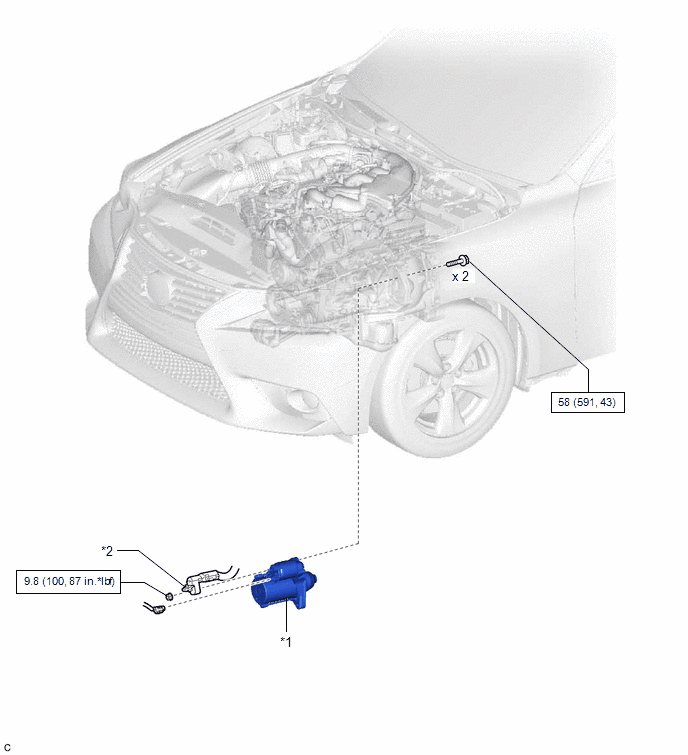

Fig 1: Starter Replacement Components With Torque Specifications [04/2013 - 08/2015] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	STARTER ASSEMBLY	*2	TERMINAL CAP
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

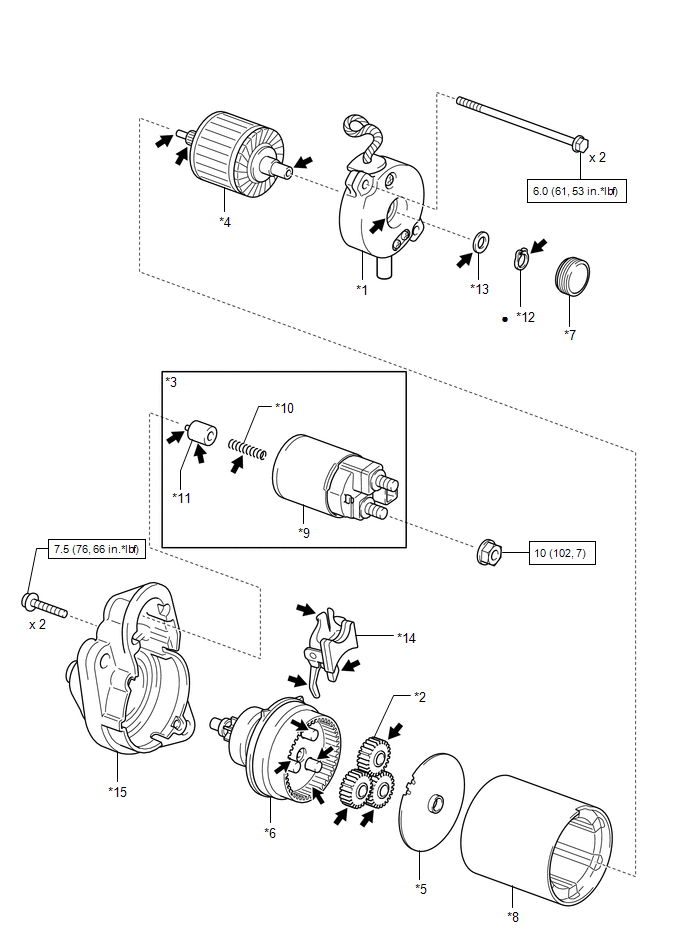

Fig 2: Starter Replacement Components With Torque Specifications [04/2013 - 08/2015] (2 Of 2)

*1	STARTER COMMUTATOR END FRAME ASSEMBLY	*2	PLANETARY GEAR
*3	REPAIR SERVICE STARTER KIT	*4	STARTER ARMATURE ASSEMBLY
*5	STARTER ARMATURE PLATE	*6	STARTER CENTER BEARING CLUTCH SUB-ASSEMBLY
*7	STARTER COMMUTATOR END FRAME COVER	*8	STARTER YOKE ASSEMBLY
*9	MAGNET SWITCH	*10	RETURN SPRING
*11	PLUNGER	*12	SNAP RING
*13	WASHER	*14	DRIVE LEVER SET PIN
*15	STARTER DRIVE HOUSING ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	High-temperature Grease	-	-
